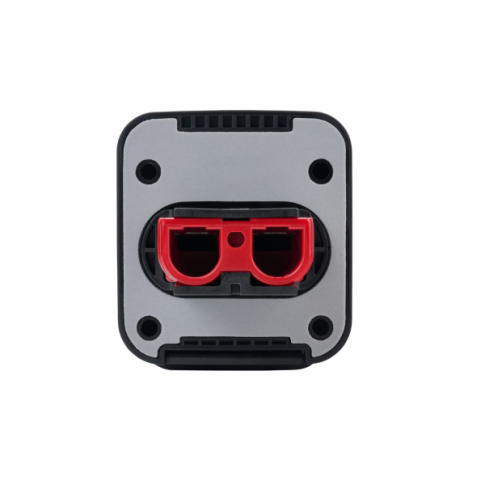

Scanstrut SC-V-S1 Ventura Series Anderson 50A Solar Connection

Description

The Scanstrut Ventura Series Anderson 50A Solar Connection (SC-V-S1) takes on-the-road power delivery to the next level. Perfect for connecting in a solar connection to your setup providing up to 600W max input on 12V systems (1200W on 24V and 2400W on 48V).

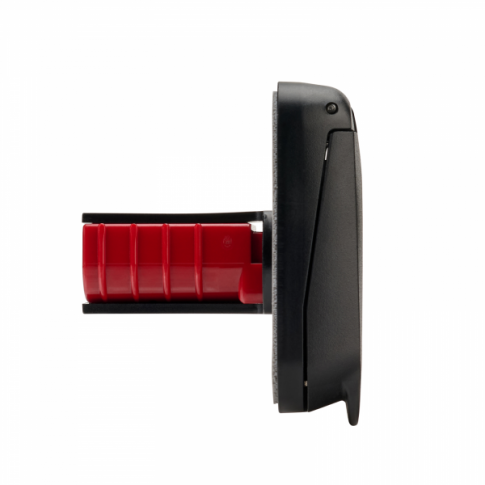

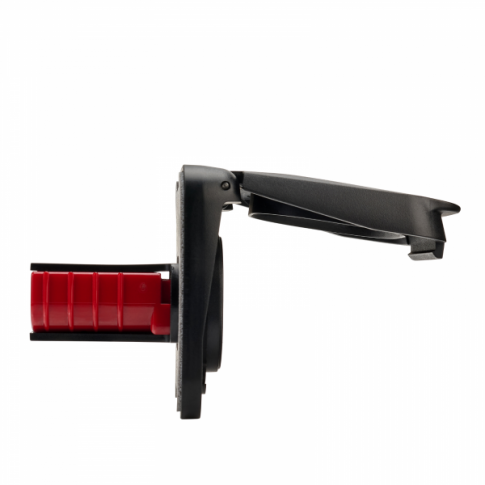

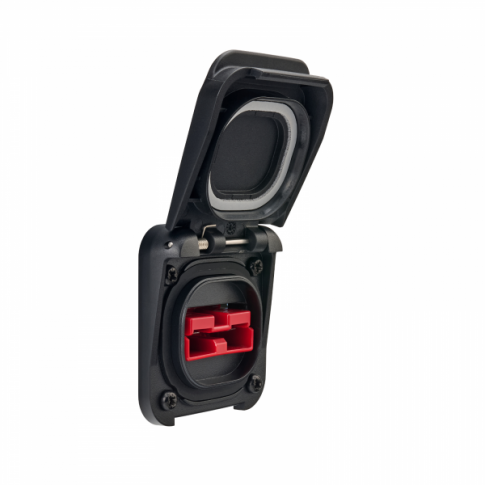

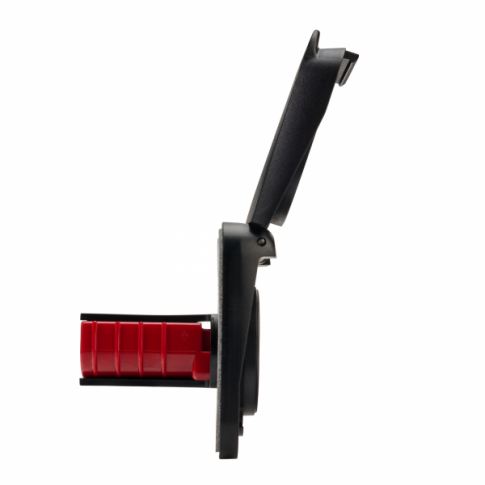

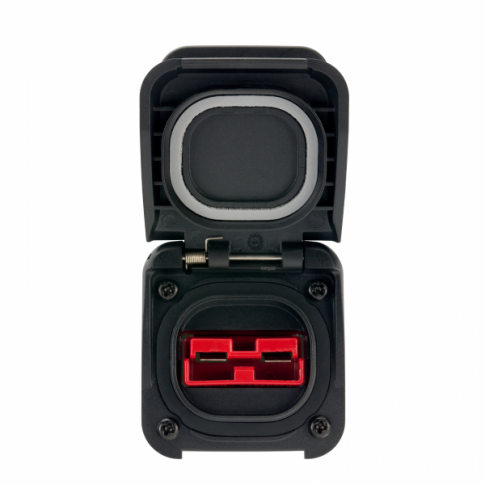

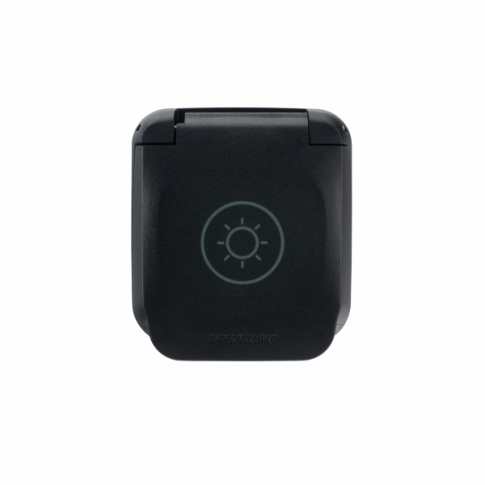

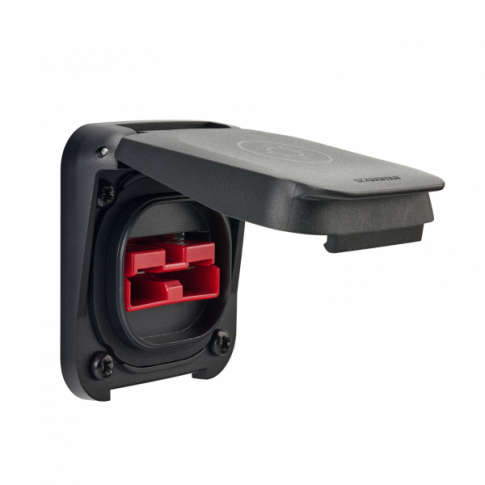

Featuring an IP68-rated spring-loaded lid, the socket stays tightly closed when not in use, protecting it from water, dust, and corrosion—ensuring long-lasting performance, no matter where your adventure takes you. When in use, the lid locks open securely, keeping your cables safe and out of the way.

Designed for internal installations in vans, boats, and vehicles, the Ventura Series Anderson 50A Solar Connection is ideal for incorporating a solar input into your automotive or marine vehicle.

Key Features:

• 50A Max Input – High-power Anderson connection for connecting solar panels (600W @ 12V, 1200W @ 24V, 2400W @ 48V)
• IP68 Waterproof – Spring-loaded lid seals tight when closed to protect from elements (IP69K when lid closed)
• Secure Cable Protection – Lid locks open to hold cables safely during use
• Easy Installation – Fits Ø25.4mm (1.00”) hole, includes front-fit bezel kit
• Marine-Grade Materials – UV-stable, corrosion-resistant with 316 stainless steel hinge
• Compact, Durable Design – Perfect for tight internal van or boat mounting

What’s Included:

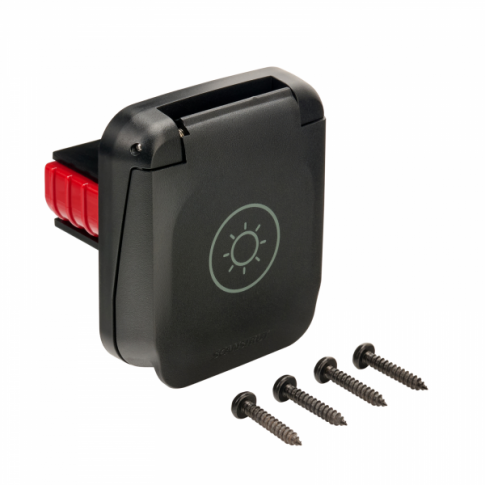

• 1 × Scanstrut SC-V-S1 Ventura Series Anderson 50A Solar Connection
• Front-fit bezel kit
• Mounting hardware
• Installation instructions

Applications:

• Adding solar connection into your setup
• 12V-48V vehicle and marine systems
• Internal van installations
• Off-grid power setups and more

Click on the Details and Specification tabs for more information.

Specifications

Specifications:

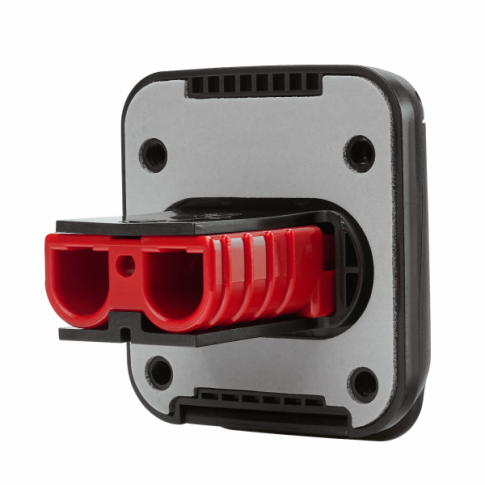

• Connection Type: Anderson SB50 – Red
• Max Current: 50A
• Max Voltage: 600V DC
• Max Input: 600W/1200W/2400W (12V/24V/48V)
• Waterproof Rating: IP68 (cover open); IP69K (cover closed)
• Certifications: CE, RoHS

Installation

Please follow the installation instructions in the Documents tab.

Documents and links

The following documents are available to download:

Installation instructions for the SC-V-S1

Technical drawing of the SC-V-S1
