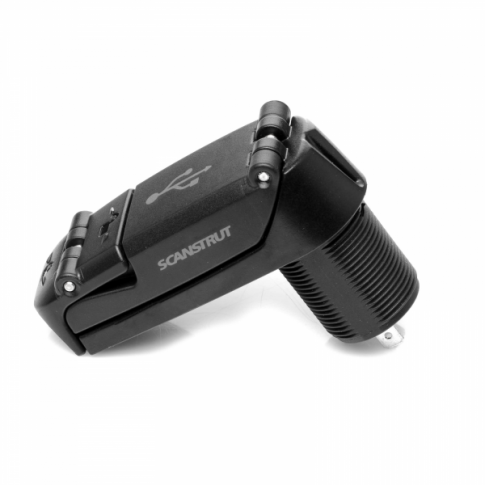

Scanstrut SC-USB-03 ROKK Charge Pro USB-A and USB-C Fast Charging Socket – 12V/24V Marine & RV Waterproof Fast Charger

Description

The Scanstrut ROKK Charge Pro delivers ultra-fast dual USB charging in a sleek, space-saving design. Featuring 1 × USB-C (up to 60W) and 1 × USB-A (36W), it’s perfect for charging laptops, tablets, and smartphones onboard. With up to 36W on 12V systems and 60W on 24V systems, it easily keeps up with the power demands of modern electronics—including charging an iPad Pro and iPhone at the same time.

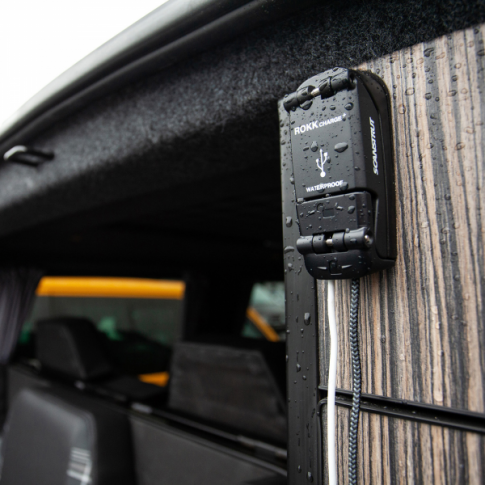

Built for harsh environments, Charge Pro features a click-and-lock lid that keeps the socket IPX6 waterproof—even while in use. Constructed from marine-grade, UV-resistant materials with a 316 stainless hinge and spring, it’s fully washdown-ready and built to last.

Key Features

• Dual Ports – 1 × USB-C (60W max) + 1 × USB-A (36W max)
• Ultra-Fast Charging – Charges laptops, tablets, and phones at maximum speed
• Compact Design – Space-saving footprint, ideal where installation space is limited

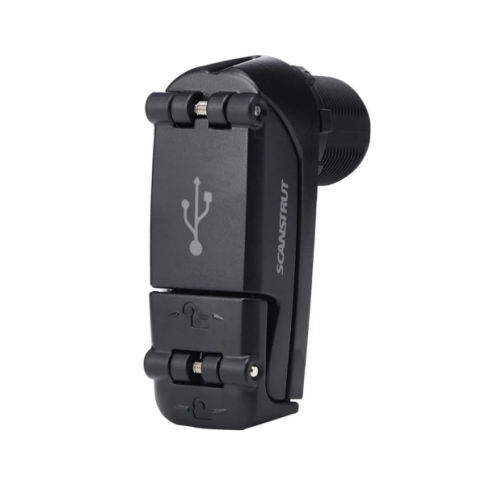

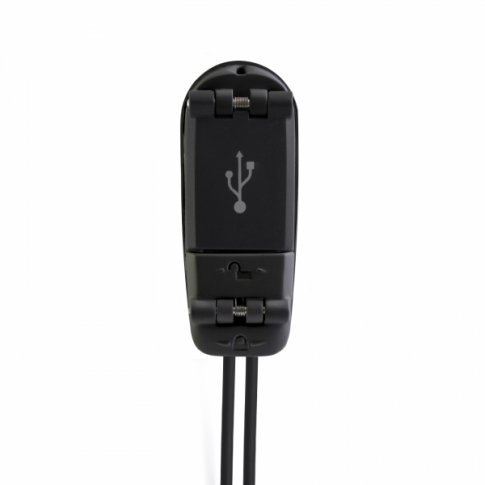

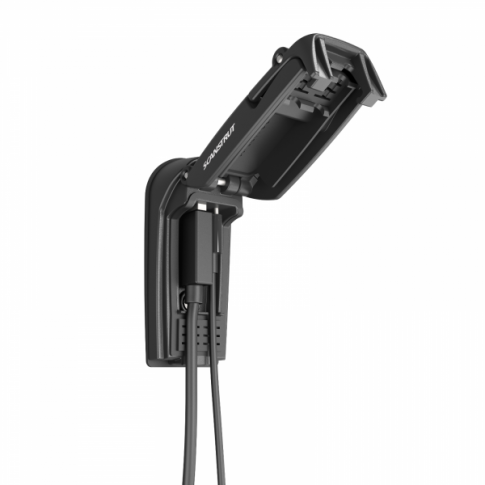

• Click-and-Lock Lid – Keeps the unit IPX6 waterproof, even when charging
• Marine-Grade Construction – UV-resistant, anti-corrosion coating, 316 stainless hinge & spring
• Universal Compatibility – Works with all USB-A and USB-C devices, charging two at once

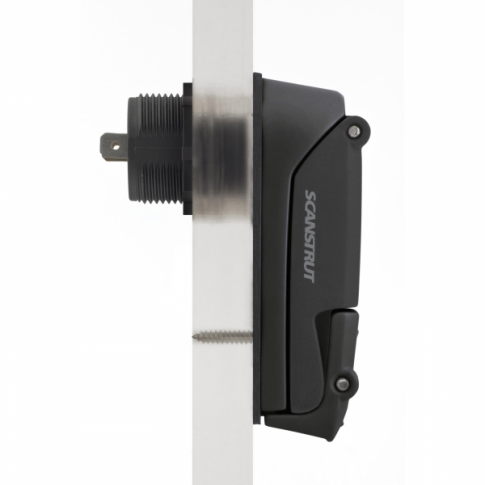

• Retrofit-Friendly – Fits a standard 29mm USB socket hole for quick upgrades

What’s Included

• 1 × Scanstrut SC-USB-03 ROKK Charge Pro USB Charger

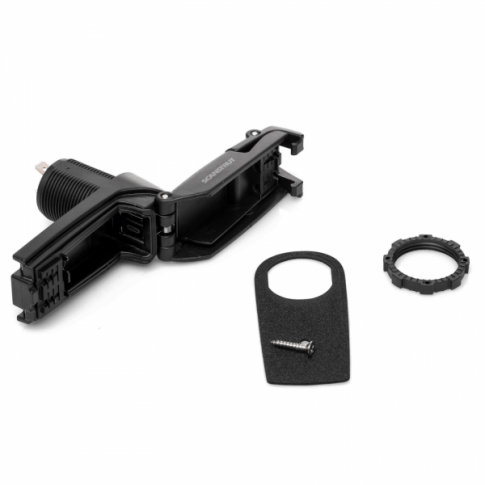

• Mounting hardware
• Installation instructions

Applications

• USB-C laptops & ultrabooks
• Tablets & smartphones (iPad, iPhone, Android)
• Action cameras, drones & GPS units

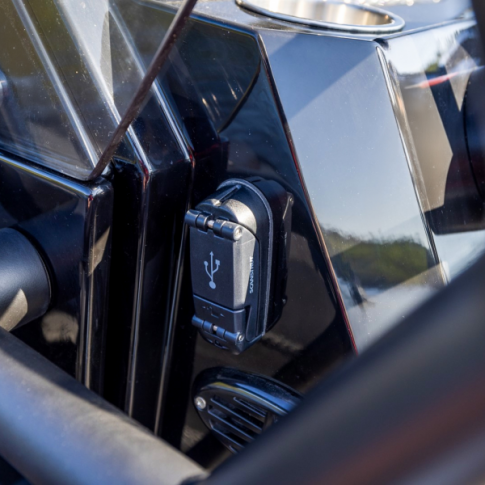

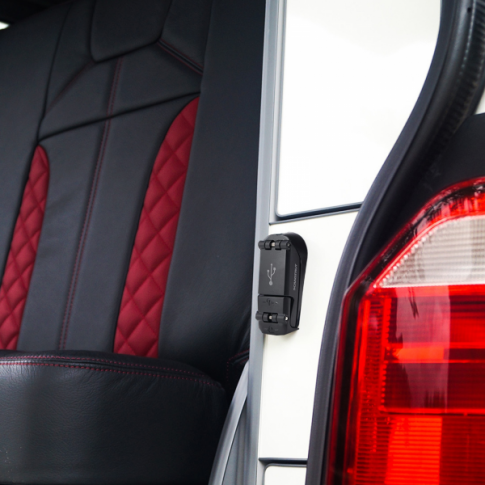

• Marine, campervan & RV 12V/24V systems

Click on the Details and Specification tabs for more information.

Specifications

Specifications:

• Input Voltage: 10–32V DC (12V/24V systems)
• USB-C Output (12V System): 36W max (5V⎓3A, 9V⎓3A, 12V⎓3A)
• USB-C Output (24V System): 60W max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A)
• USB-A Output (12V/24V System): 36W max (5V⎓1.5A, 9V⎓1.5A, 12V⎓1.5A/3A)
• Max Input Current: 6A
• Standby Power Draw: 0.01W
• Certifications: CE, FCC, UKCA, C-Tick, ROHS

Installation

Please follow the installation instructions in the Documents tab.

Documents and links

The following documents are available to download:

Installation instructions for the SC-USB-03

Technical drawing of the SC-USB-03
