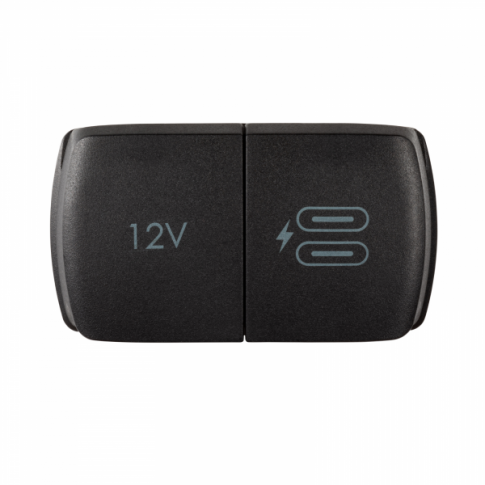

Scanstrut SC-MULTI-F1 Flip Pro Multi Dual USB-C and 12V Power Socket – 12V/24V Marine & RV Waterproof Fast Charger

Description

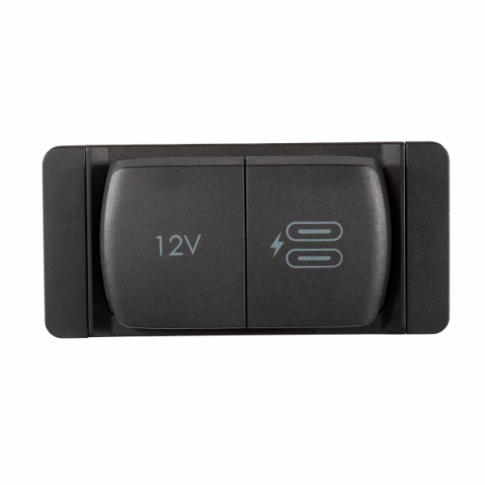

The Scanstrut Flip Pro Multi (SC-MULTI-F1) combines dual high-power USB-C charging with a 12V power socket in one sleek, marine-ready unit. Delivering up to 60W USB-C fast charging alongside a traditional 12V socket (120–150W max), it’s the ultimate all-in-one power solution for boats, campervans, and RVs.

Designed for the harshest environments, Flip Pro Multi features spring-loaded protective caps that stay tightly closed when not in use, keeping the ports safe from water and dust. With marine-grade construction, IPX4 waterproofing, UV resistance, and 316 stainless steel hardware, it’s built to perform and last in tough conditions.

Key Features

• Dual Power – 2 × USB-C (up to 60W) + 1 × 12V socket (120–150W max)
• Universal Charging – Powers laptops, tablets, smartphones, and 12V accessories
• Marine-Grade Protection – IPX4 waterproof (closed), UV resistant, 316 stainless hinge & spring
• Safe & Reliable – Conformal-coated electronics, CE/FCC/UKCA certified

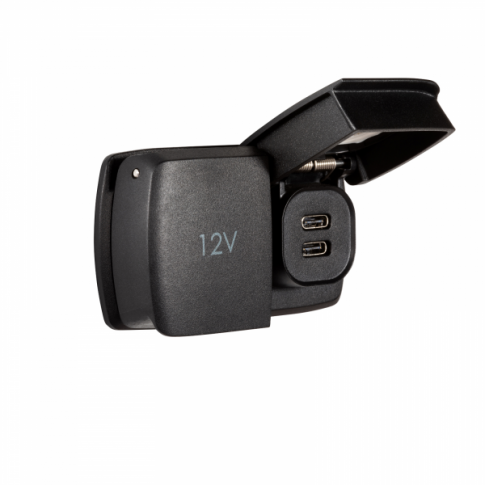

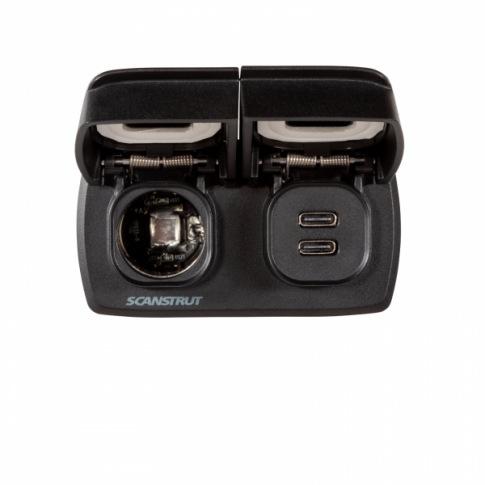

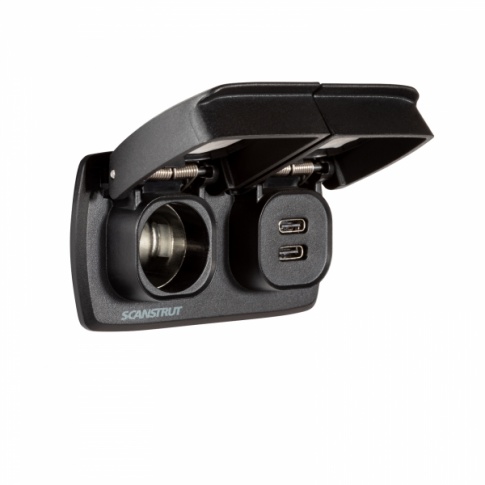

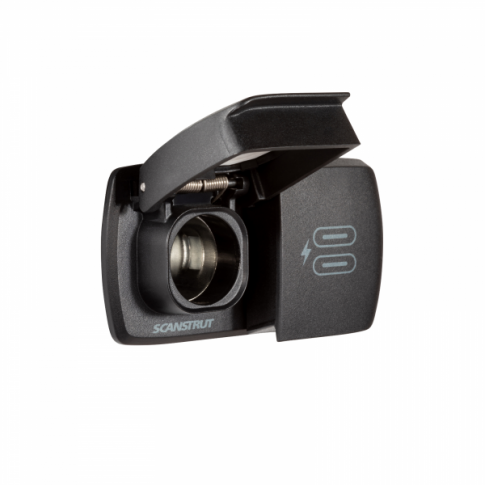

• User-Friendly – Spring-loaded flip caps protect ports when not in use

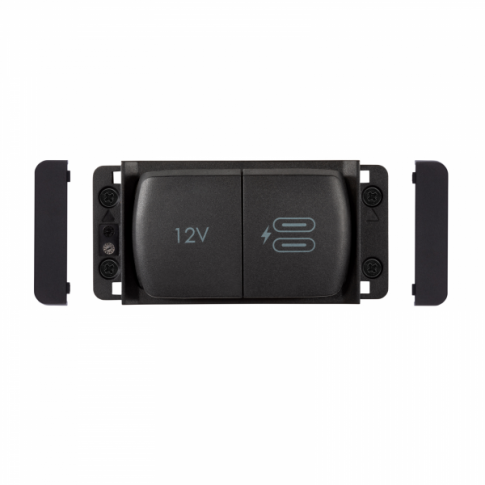

• Compact & Retrofit-Friendly – Supplied with front-fit bezel kit for quick installation

What’s Included

• 1 × Scanstrut SC-MULTI-F1 Flip Pro Multi Charger
• Front-fit bezel kit
• Mounting hardware
• Installation instructions

Applications

• USB-C laptops & ultrabooks
• Tablets & smartphones (iPad, iPhone, Android)
• 12V onboard accessories (fridges, coolers, inflators, pumps)

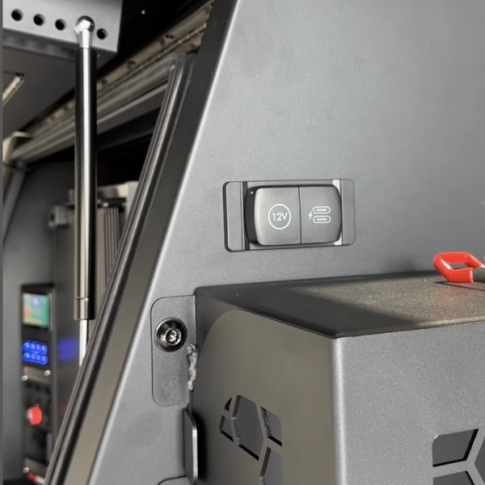

• Marine, campervan & RV power systems

Click on the Details and Specification tabs for more information.

Specifications

Specifications:

USB-C Charging:

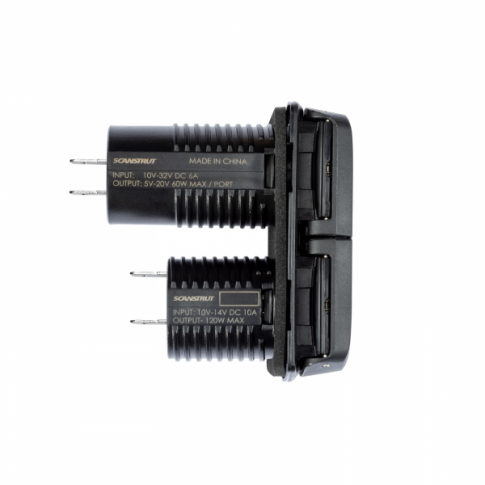

• Input Voltage: 10–32V DC (12V/24V systems)
• Output (12V System): 36W max (5V⎓3A, 9V⎓3A, 12V⎓3A)
• Output (24V System): 60W max (5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A)
• Max Input Current: 6A (10A fuse recommended)
• Standby Draw: 0.01W
• Certifications: CE, FCC, UKCA, C-Tick, ROHS, WEE

12V Power Socket:

• Input Voltage: 10–15V DC (12V system only)
• Output Power: 120–150W max (up to 10A)
• Standby Draw: 0.01W
• Certifications: CE, ROHS, UKCA, WEE

Installation

Please follow the installation instructions in the Documents tab.

Documents and links

The following documents are available to download:

Installation instructions for the SC-MULTI-F1

Technical drawing of the SC-MULTI-F1
