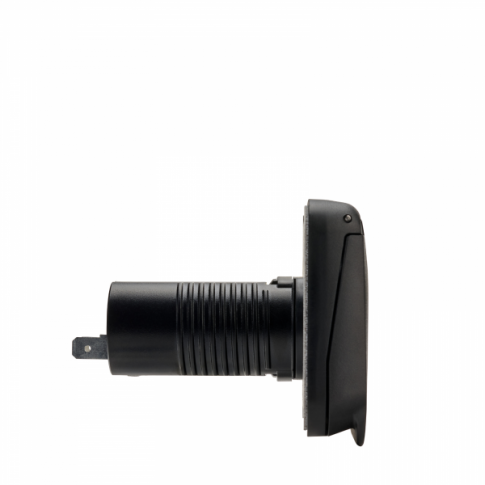

Scanstrut SC-V-USB-01 Ventura Series Dual USB-C Socket – 12V/24V Marine & RV Waterproof Charger

Description

The Scanstrut Ventura Series Dual USB-C Socket (SC-V-USB-01) delivers next-generation ultra-fast USB charging in a compact, waterproof design made for life at sea. Compatible with both 12V and 24V systems, it features 2x USB-C ports, giving you the flexibility to charge multiple devices at once – including phones, tablets, and even laptops, from outside your vehicle with ease.

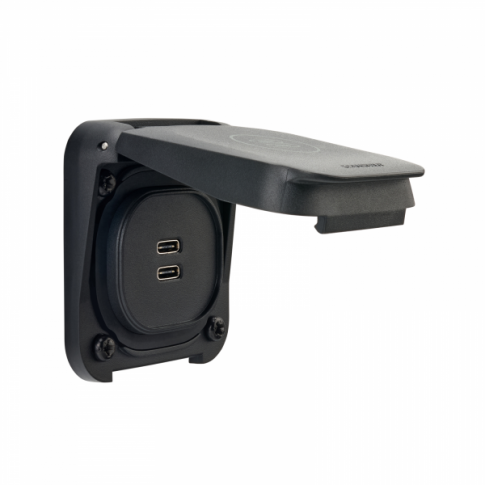

Engineered for harsh marine environments, Ventura Series features a spring-loaded, IP68-rated cover that stays shut to keep water and dust out, and flips open to lock cables in securely when charging. Built from marine-grade, UV-resistant materials with a 316 stainless steel hinge, it’s fully washdown-ready and built to last.

Key Features:

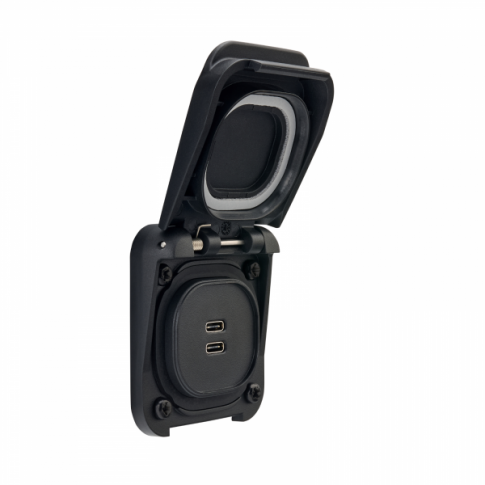

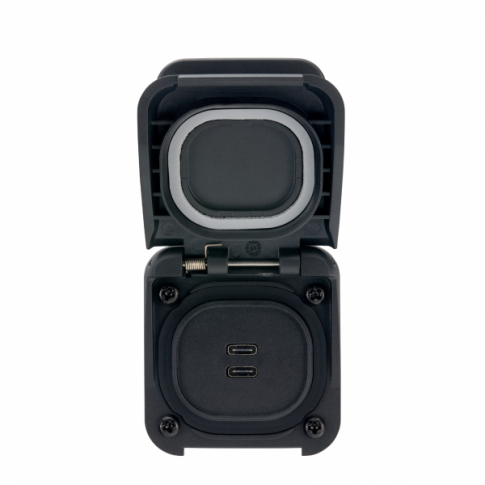

• Dual USB-C Ports – Charge up to 2 devices at the same time
• Fast Charging – Up to 60W USB-C output on 24V systems, perfect for laptops
• Compact & Retrofit-Friendly – Fits a standard 29mm USB mounting hole

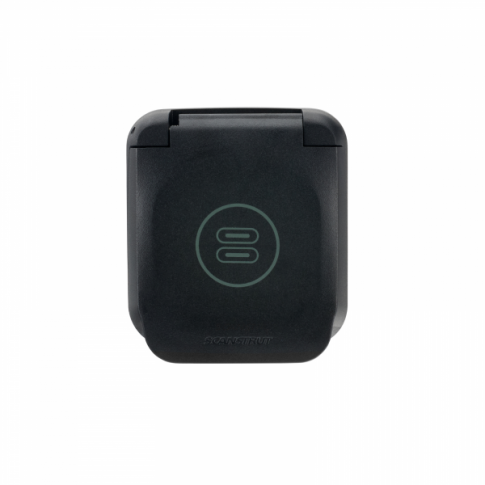

• IP68 Waterproof – Washdown-ready when cover is closed
• Marine-Grade Construction – UV-resistant body, corrosion-resistant internals

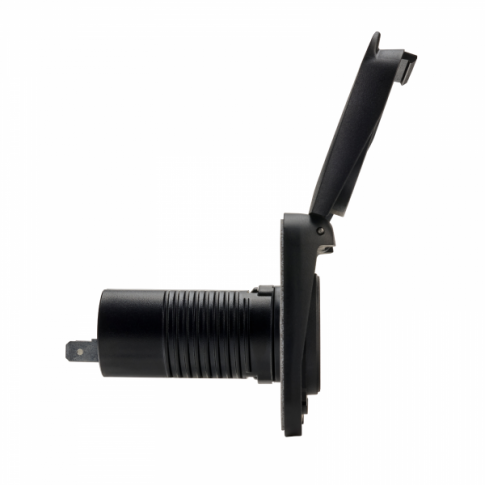

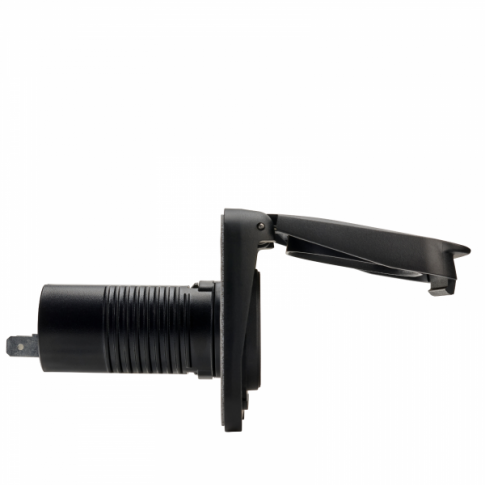

• Spring-Loaded Cover – Locks shut for protection, locks open to secure cables
• Universal Compatibility – Suitable for charging a wide range of USB-C product from phones, tablets, and laptops

Electrical Performance:

• Input Voltage: 10–32V DC (12/24V systems)
• USB-C Output:
  • 12V system: 36W max
  • 24V system: 60W max
• Max Input Current: 6A (10A fuse recommended)
• Standby Power Draw: 0.01W
• Certifications: CE, FCC, UKCA, C-Tick, RoHS

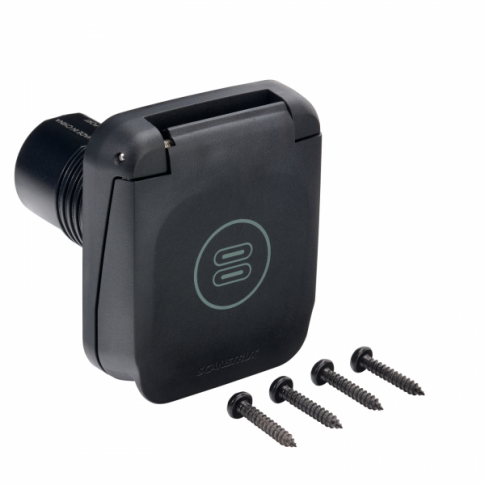

What’s Included:

• 1 × Scanstrut SC-V-USB-01 Ventura Series Dual USB-C Charger
• Front-fit bezel kit
• Mounting hardware
• Installation instructions

Applications:

• Phones, tablets & iPads
• USB-C laptops & ultrabooks
• Action cameras, drones, and GPS units
• Marine & automotive 12V/24V systems

Click on the Details and Specification tabs for more information.

Specifications

Specifications:

• Input Voltage: 10-32VDC (12/24V system)
• Max Input Current: 6A
• Type-C Max Output 12V system: 5V⎓3A, 9V⎓3A, 12V⎓3A
• Type-C Max Output 24V system: 5V⎓3A, 9V⎓3A, 12V⎓3A, 15V⎓3A, 20V⎓3A
• Stanby Draw: 0.01W
• Certifications: CE, FCC, UKCA, C-Tick, RoHS

Installation

Please follow the installation instructions in the Documents tab.

Documents and links

The following documents are available to download:

Installation instructions for the SC-V-USB-01

Technical drawing of the SC-V-USB-01
