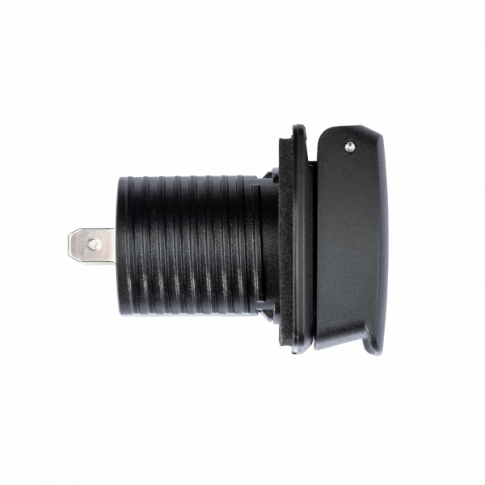

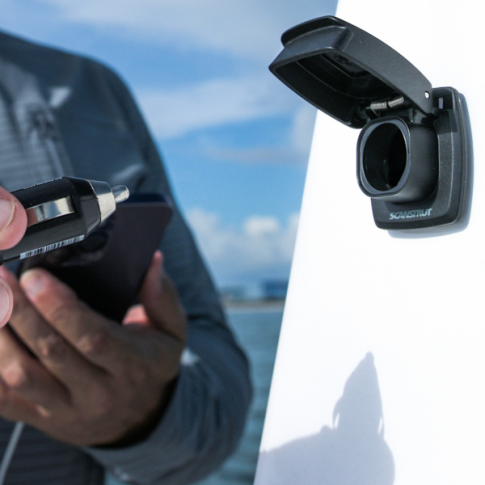

Scanstrut SC-12V-F1 Flip Pro 12V Power Socket

Description

The Scanstrut Flip Pro 12V Power Socket (SC-12V-F1) takes on-the-road power delivery to the next level. Perfect for powering your cooler box, fridge, or other power-hungry devices, this rugged 12V socket provides up to 150W max output on 12V systems.

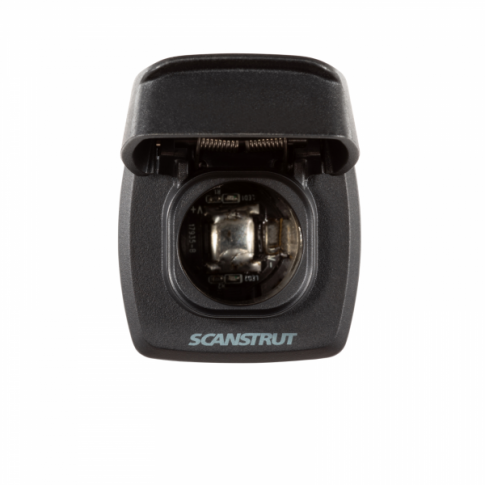

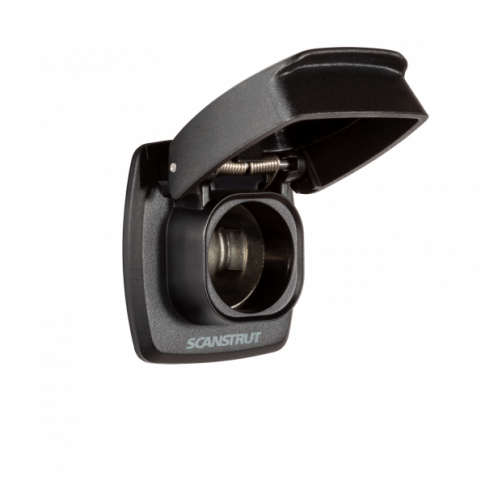

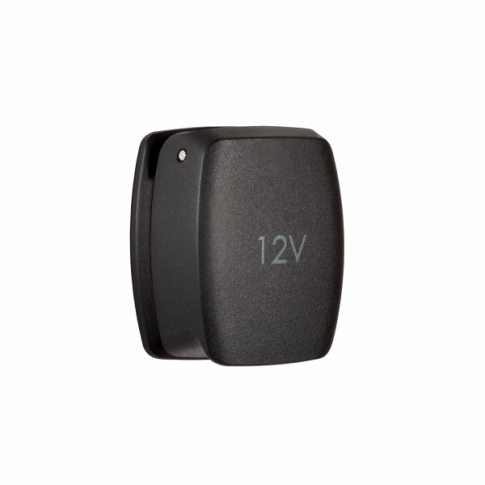

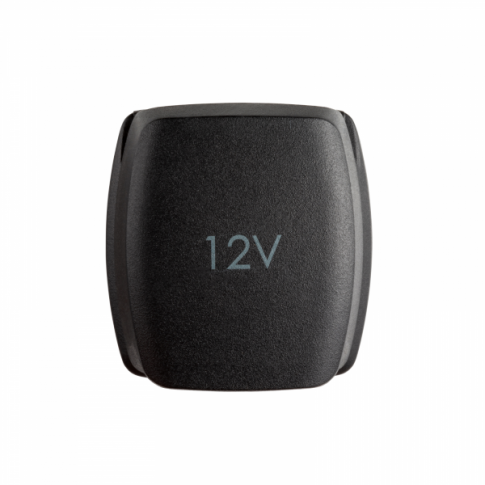

Featuring an IPX4-rated spring-loaded lid, the socket stays tightly closed when not in use, protecting it from water, dust, and corrosion—ensuring long-lasting performance, no matter where your adventure takes you. When in use, the lid locks open securely, keeping your cables safe and out of the way.

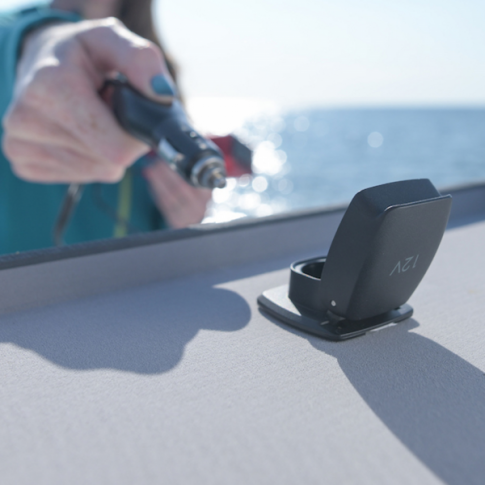

Designed for internal installations in vans, boats, and vehicles, the Flip Pro 12V is ideal for powering cooler boxes, external fridges, lights, and more.

Key Features:

• 150W Max Output – High-power 12V supply (10A @ 12V) for demanding devices
• IPX4 Waterproof – Spring-loaded lid seals tight when closed to protect from elements
• Secure Cable Protection – Lid locks open to hold cables safely during use
• Universal Fit – Compatible with all standard 12V power plugs

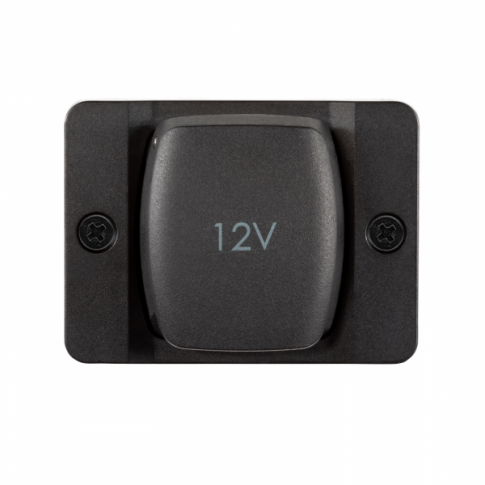

• Easy Installation – Fits Ø32mm (1.25”) hole, includes front-fit bezel kit
• Marine-Grade Materials – UV-stable, corrosion-resistant with 316 stainless steel hinge

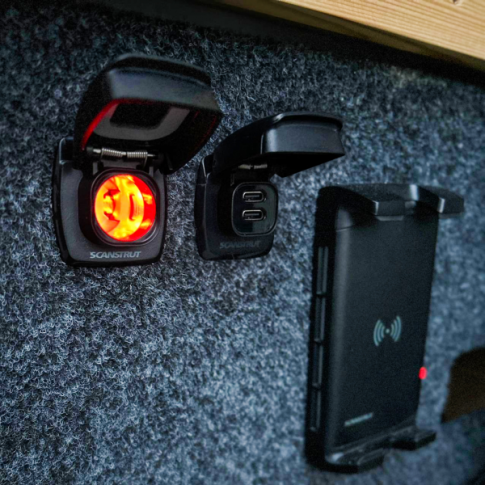

• LED Indicator Light – Red LED running light to show power status
• Compact, Durable Design – Perfect for tight internal van or boat mounting

What’s Included:

• 1 × Scanstrut SC-12V-F1 Flip Pro 12V Power Socket
• Front-fit bezel kit
• Mounting hardware
• Installation instructions

Applications:

• Cooler boxes and external fridges
• 12V vehicle and marine accessories
• Internal van installations
• Off-grid power setups and more

Click on the Details and Specification tabs for more information.

Specifications

Specifications:

• Input Voltage: 10-15VDC (12V systems only)
• Max Current: 10A
• Max Output: 150W
• Standby Draw: 0.01W
• Certifications: CE, RoHS, WEEE, UKCA

Installation

Please follow the installation instructions in the Documents tab.

Documents and links

The following documents are available to download:

Installation instructions for the SC-12V-F1

Technical drawing of the SC-12V-F1
