Solar panel mounting set with heavy duty corner brackets, side brackets and a waterproof cable gland

Description

This is a solar panel mounting set for fixing solar panels to vehicles, boats and other flat roofs and surfaces.

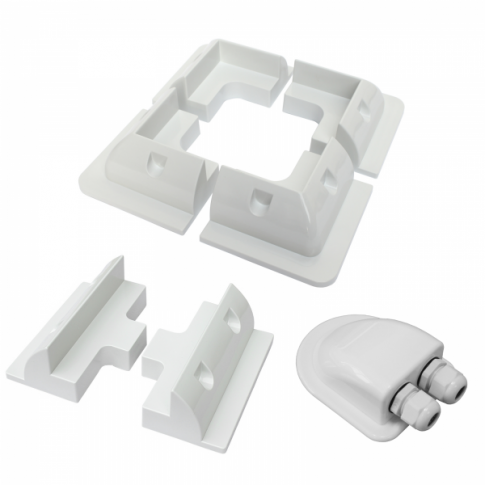

The set includes:

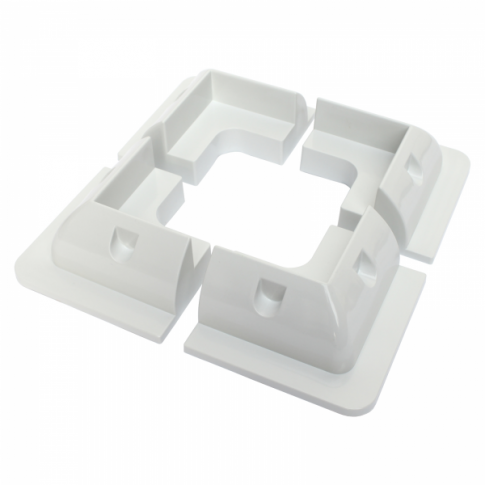

• 4 heavy duty plastic corner brackets

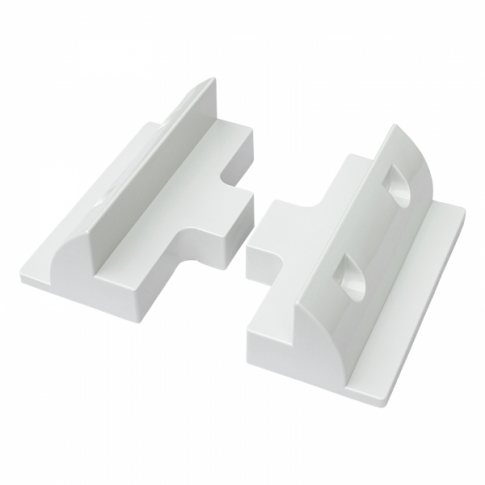

• 2 heavy duty side brackets

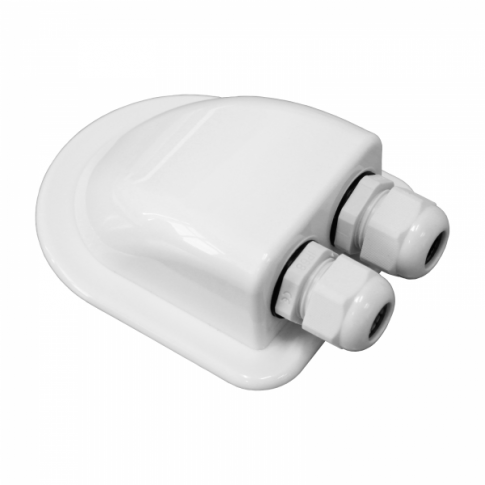

• A waterproof double entry cable gland

This set is ideal for all Photonic Universe rigid frame solar panels and is suitable for most other rigid frame solar panels with a round profile cable.

Click on the Details and Specifications tab for more information.

Specifications

Specifications:

– Material: plastic
– Colour: white
– Cable diameter for the cable gland: 3-7mm

– Dimensions:

• Corner brackets (each): 15 x 15 x 6.5 cm
• Side brackets (each): 18 x 9 x 6.5 cm
• Cable gland: 11 x 9 x 4 cm
• Combined weight: 2.7kg

Installation

Installation is easy: holes should be drilled in each bracket in the designated places, then the brackets should be placed on the solar panel frame and the corresponding holes marked and then drilled (smaller diameter) in the solar panel frame. Then the brackets should be fixed to the solar panel using self-tapping screws (not included). Finally, while the brackets are fixed to the solar panel they should be bonded to the roof using an appropriate sealant or adhesive (not included). Any extension cables can then be fed through the cable entry gland which should then be bonded to the roof in the same way as the brackets.
