Scanstrut DS-HD10-BLK Double Horizontal Cable Seal – Waterproof Cable Gland for 6-10mm Cables, IP68 Rated, UV-Stable Plastic, Screw Mount – Black

Description

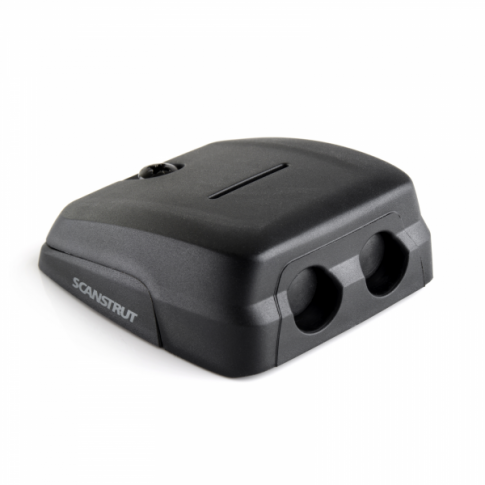

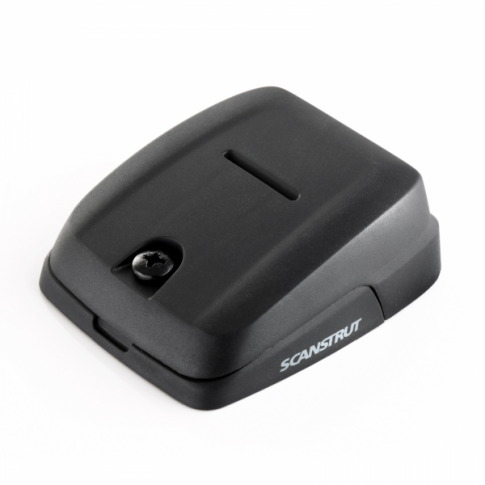

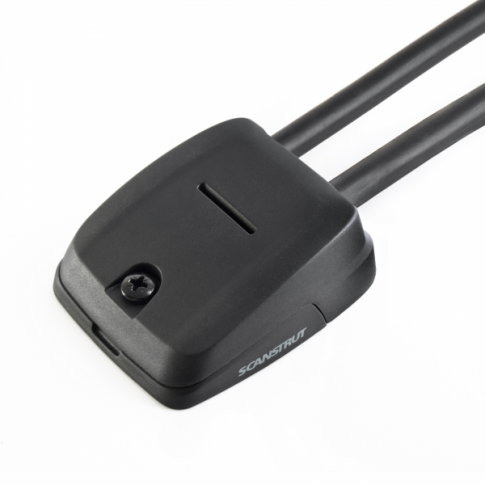

The Scanstrut DS-HD10-BLK Double Horizontal Cable Seal is a premium watertight solution designed specifically for routing two solar panel cables from outside to inside surfaces. Suitable for cable diameters ranging from 6-10mm, this low-profile seal offers a sleek finish and long-lasting performance, making it ideal for marine, vehicle, and off-grid solar applications.

Key Features:

• IP68 Rated – Guaranteed 100% watertight seal for complete protection
• UV-Stable High-Impact Plastic – Durable, hard-wearing, and marine-grade
• Quick & Easy Installation – Captive nuts for fast, secure mounting
• Clean Finish – No messy sealant required on bungs
• Flexible Bung Options – Includes both pre-drilled and blank self-drill bungs
• Includes 316 Stainless Steel Fixings & 3M Gasket – For maximum strength and weather resistance
• Low-Profile Design – Impact-resistant and discreet on any surface

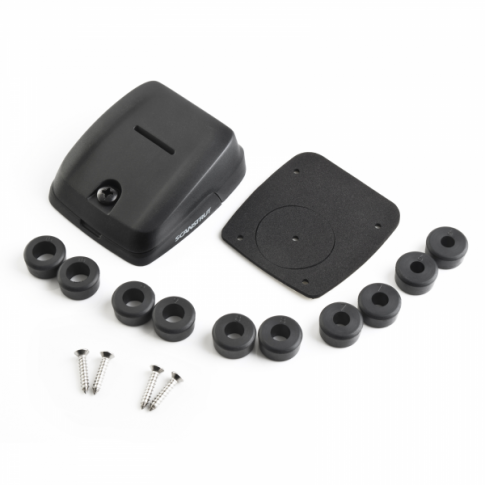

What’s Included:

• 1 x Scanstrut Double Horizontal Cable Seal
• 12 x Bungs (2 x 6mm, 2 x 7mm, 2 x 8mm, 2 x 9mm, 2 x 10mm, 2 x Self-Drill)
• 316 stainless steel fixings
• Waterproof 3M gasket
• Installation instructions

Applications:

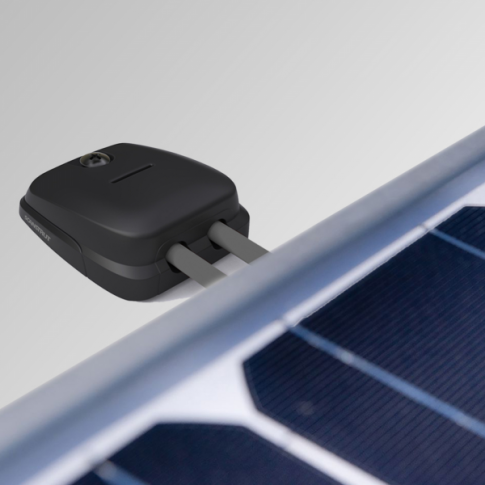

• Solar panel installations
• Marine electronics

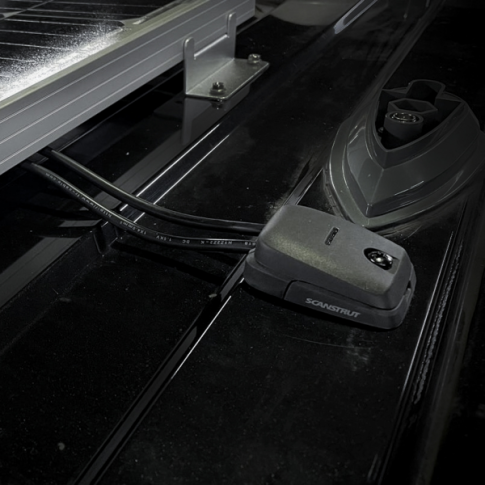

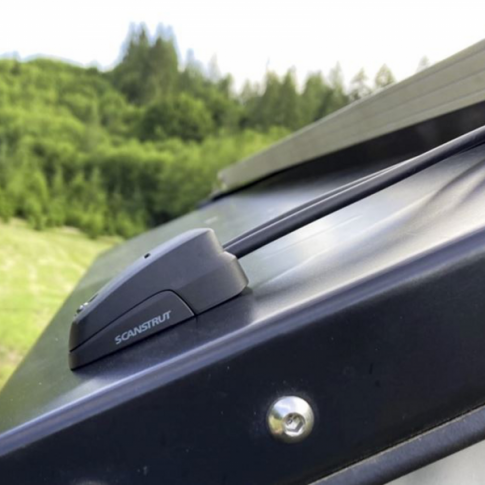

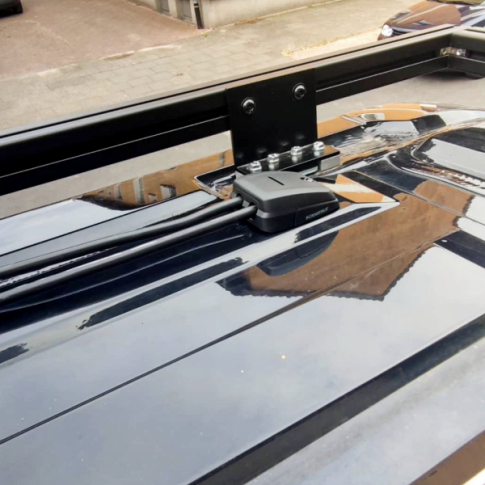

• Campervan & vehicle rooftop systems
• Off-grid or outdoor power setups

Click on the Details and Specification tabs for more information.

Specifications

Specifications:

• Material: UV-Stable High-Impact Plastic
• Seal Rating: IP68 (100% Watertight)
• Cable Diameter: 6-10mm
• Height: 28.5mm
• Length: 75.1mm
• Colour: Black

Installation

Please follow the installation instructions in the Documents tab.

Documents and links

The following documents are available to download:

Installation instructions for the DS-HD10-BLK

Technical drawing of the DS-HD10-BLK
