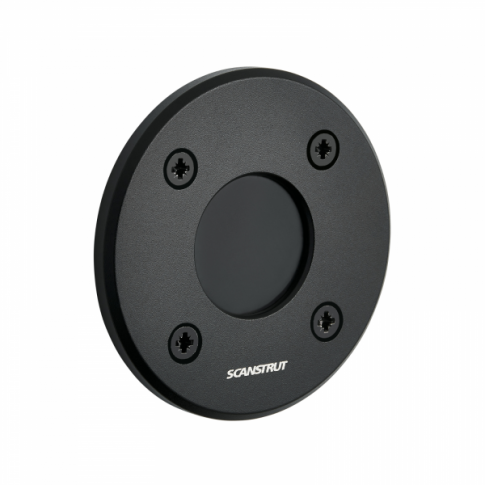

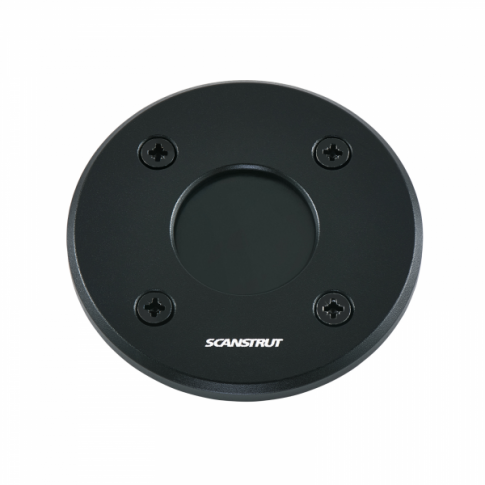

Scanstrut DS-LP-30-BLK Low Profile Black Cable Seal for single cables 9-14mm and connectors up to 30mm – Anodised Aluminium

Description

The Scanstrut DS-LP-30-BLK is a compact, low-profile cable seal designed to route a single cable from 9-14mm in diameter with connectors up to 30mm. Engineered for outdoor and marine environments, it delivers a sleek, flush finish while guaranteeing a 100% watertight IP68 installation. Constructed from premium black anodised aluminium, this cable seal offers superior corrosion resistance, UV stability, and long-term durability, making it ideal for solar, marine, and off-grid applications.

Key Features:

• IP68 Waterproof – Tested and approved for a 100% watertight seal

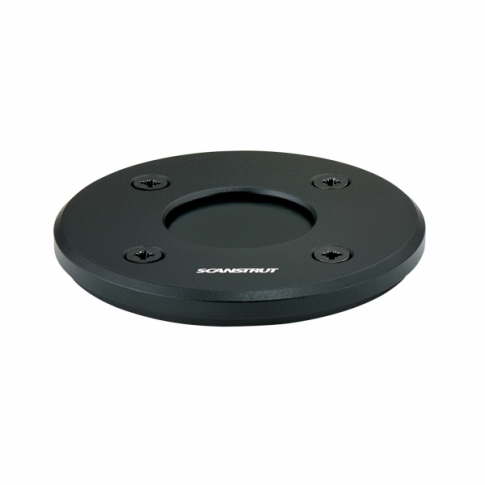

• Low-Profile Slimline Design – 68% lower mounting height than DS21B-P-BLK for a cleaner look
• Premium Anodised Aluminium – Marine-grade durability with a refined black finish
• Cable Compatibility – Routes a single cable Ø9-14mm with connectors up to Ø30mm
• No Sealant Required – Closed-cell base gasket ensures a clean, tidy finish
• Flexible Installation – Supplied with multiple pre-drilled bungs plus a self-drill option
• Convenient Split-Seal Option – Allows installation without removing connectors
• Reliable & Repeatable – Captive nuts for easy, secure assembly and future adjustments

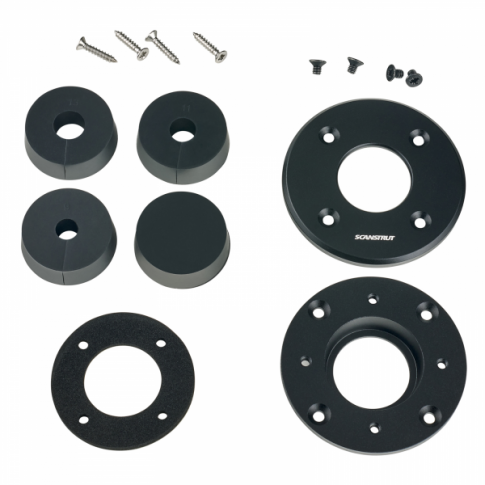

What’s Included:

• 1 × Scanstrut DS-LP-30A-BLK Low Profile Cable Seal

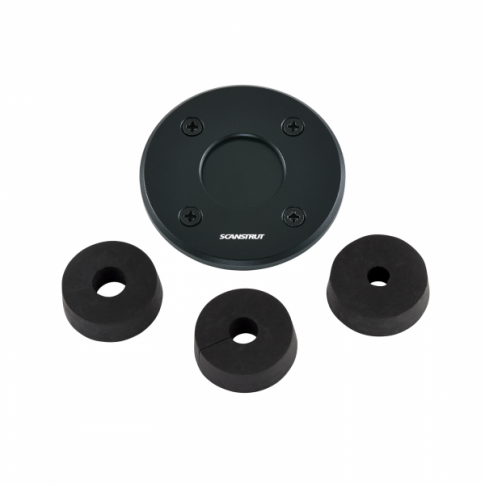

• 3 × Pre-drilled bungs (9mm, 11mm, 13mm)
• 1 × Self-drill (undrilled) bung
• Fixing hardware
• Closed-cell waterproof gasket
• Installation instructions

Applications:

• Solar panel cable routing
• Rooftop and vehicle electronics

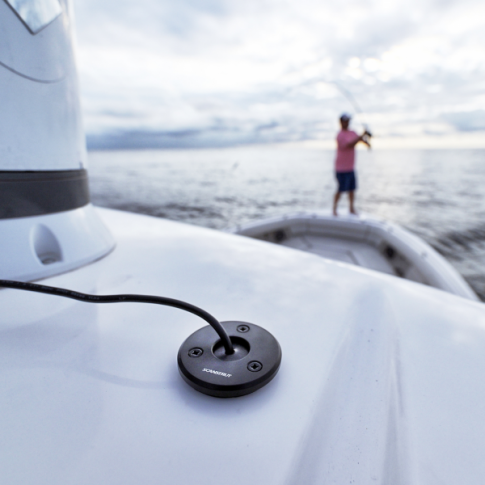

• Marine and deck systems
• Off-grid outdoor power setups

Click on the Details and Specification tabs for more information.

Specifications

Specifications:

• Material: Black anodised aluminium
• Colour: Black
• Cable Seal Diameter: 75.6mm
• Max Cable Diameter: 9-14mm
• Max Connector Size: 30mm
• Max Cable Capacity: 1
• Bungs Included: 3 × pre-drilled (9mm, 11mm, 13mm), 1 × self-drill

Installation

Please follow the installation instructions in the Documents tab.

Documents and links

The following documents are available to download:

Installation instructions for the DS-LP-21B-BLK

Technical drawing of the DS-LP-21B-BLK
