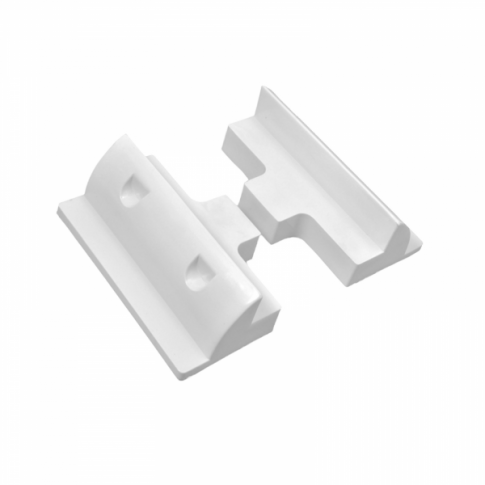

Set of 2 lightweight white plastic side mounting brackets for campervan, caravan, motorhome, boat or any flat roofs and surfaces

Description

Features and benefits:

• Lightweight and ideal for bonding to the roof
• Strong side support for small and large solar panels
• Great for motorhomes, campervans, caravans, trucks, buses, boats and yachts
• Can also be used on flat roofs of buildings, sheds, garages or other flat surfaces
• Suitable for all Photonic Universe rigid frame solar panels and most other rigid frame solar panels

This is a set of 2 white plastic side mounting brackets for fixing solar panels to vehicles, boats, roofs of buildings and other flat surfaces.

They are ideal for large Photonic Universe rigid frame solar panels with the length over 1m to provide better support in addition to corner brackets (matching product code CN_BR_L). These brackets can also be used with most other rigid frame solar panels of other manufacturers.

The brackets are particularly recommended for use on high-speed vehicles together with corner brackets for more secure fitting of large solar panels. They can also be used without corner brackets for small solar panels.

Click on the Details and Speciifcations tab for more information

Specifications

Specifications:

• Material: plastic
• Colour: white
• Size (1 bracket): 17.7 x 11.7 x 5.9 cm
• Solar panel clearance above the surface (when mounted): 2.6 cm
• Additional mounting space required to the side of the solar panel frame: 6.0 cm
• Weight: (pair of brackets): 0.3 kg

Installation

Installation is easy: 2 holes should be drilled in each bracket, and the corresponding smaller holes in the solar panel frame; then the brackets should be fixed to the solar panel using self-tapping screws (not included). The bottom surface of the brackets should be sanded with a suitable sand paper prior to gluing (as well as the mounting surface if applicable), and then the brackets can be glued to the roof using an appropriate sealant. Additional screws can be used for strength and security of fixing; if used, it is recommended to fully cover those screws in sealant on top and under the brackets to keep the surface waterproof.
