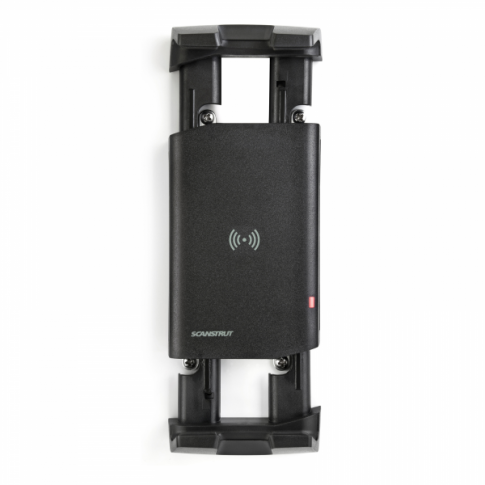

Scanstrut SC-CW-04G Active 15W Waterproof Wireless Phone Charging Mount 12V/24V

Description

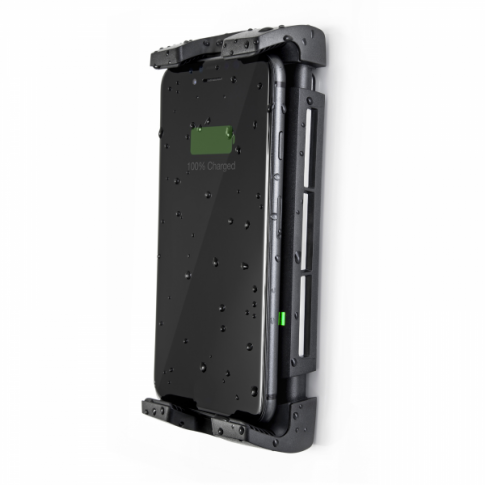

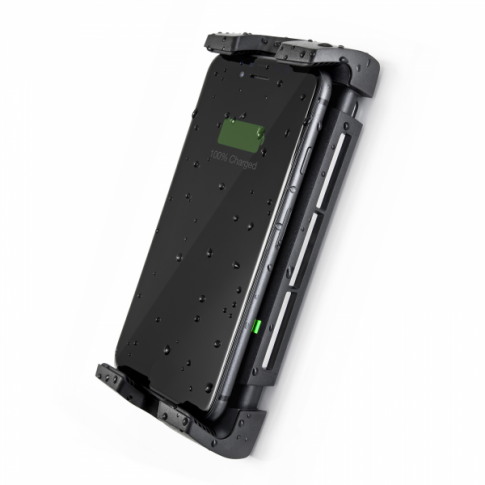

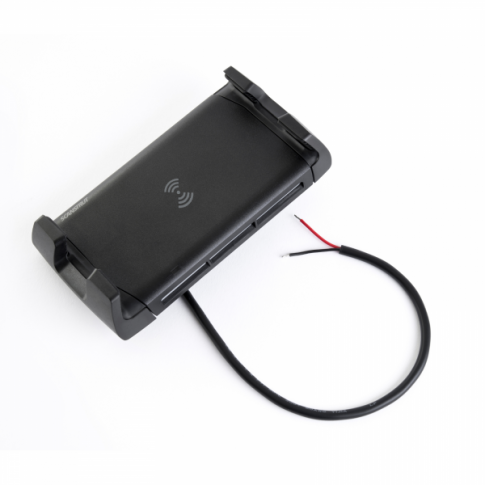

The Scanstrut SC-CW-04G Active 15W is the world’s first IPX6 waterproof wireless charging mount designed specifically for marine and outdoor environments. Featuring Qi-certified 15W fast charging, this rugged mount allows you to dock and charge your phone securely without cables – even through waterproof cases.

With high-grip, self-aligning jaws, your phone is always held in the optimum charging position, while single-handed docking makes operation effortless. Built from premium, UV-stabilised materials and tested in extreme weather, vibration, and impact conditions, the Active 15W delivers safe, reliable charging in any environment.

Key Features

• 15W Qi-certified fast wireless charging
• IPX6 waterproof – fully sealed, washdown-ready design
• Mount & charge – no cables, simple one-handed operation
• High-grip, self-aligning jaws hold phone securely in charging position
• Compatible with all major Qi-enabled phones (Apple, Samsung & more)
• Charges through non-metallic waterproof cases
• Enhanced charging efficiency with larger charging area
• Safe charging with foreign object detection & thermal cut-off
• Tested against UV, vibration, impact, and harsh marine conditions

What’s Included

• 1 × Scanstrut SC-CW-04G Active 15W Wireless Charging Mount
• Mounting hardware & waterproof pass-through kit
• Installation guide & drilling template

Applications

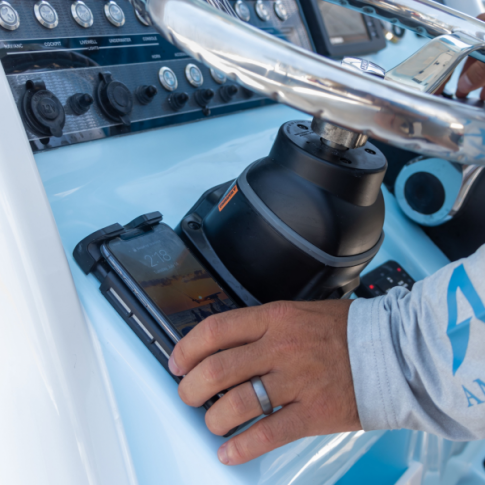

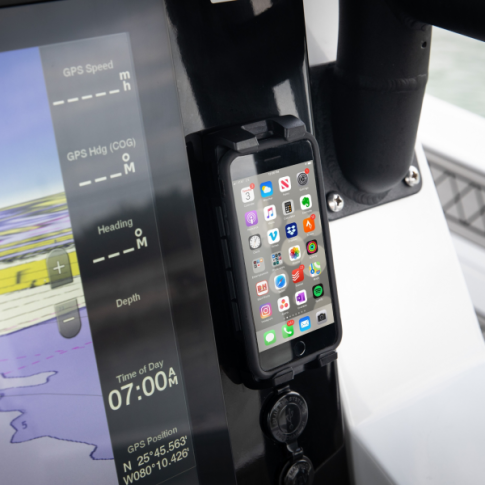

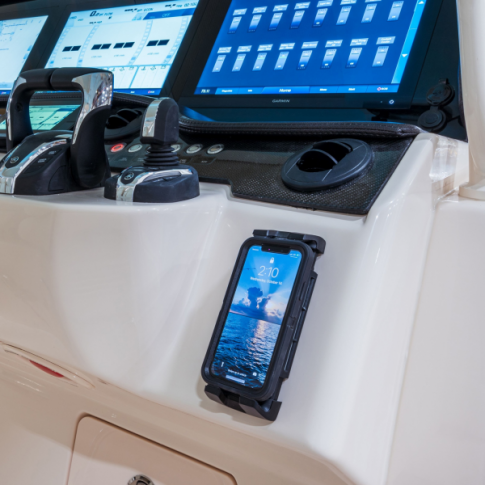

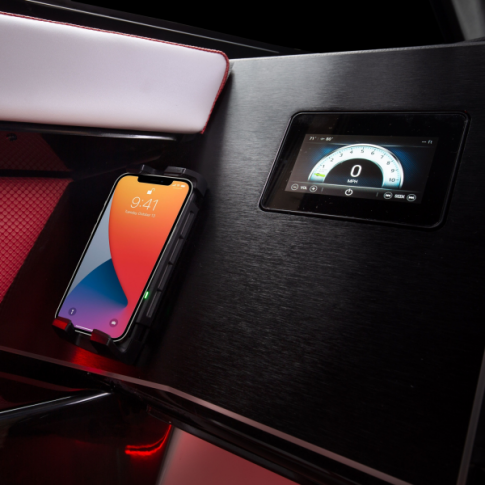

• Boat consoles & dashboards
• Marine outdoor charging solutions
• RVs, ATVs & off-grid vehicles
• Heavy-duty outdoor equipment

Click on the Details and Specification tabs for more information.

Specifications

Specifications:

Electrical:

• Input Voltage: 10–30V DC (12/24V systems)
• Max Input Current: 2A
• Output Power: 5W / 7.5W / 10W / 15W (device dependent)
• Standby Power Draw: <0.9W (12V) / <1.1W (24V)
• Cable diameter: 0.52mm² (20 AWG)

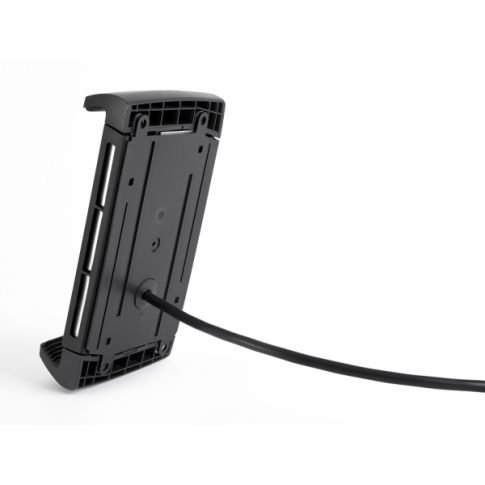

• Cable length: 500mm
• Certifications: Qi, CE, FCC, ROHS, E24, C-Tick, PSE

Mechanical:

• IPX6 waterproof housing
• UV stabilised, marine-grade materials
• High-friction grip with spring-loaded jaws

Installation

Please follow the installation instructions in the Documents tab.

Documents and links

The following documents are available to download:

Installation instructions for the SC-CW-04G

Technical drawing of the SC-CW-04G
