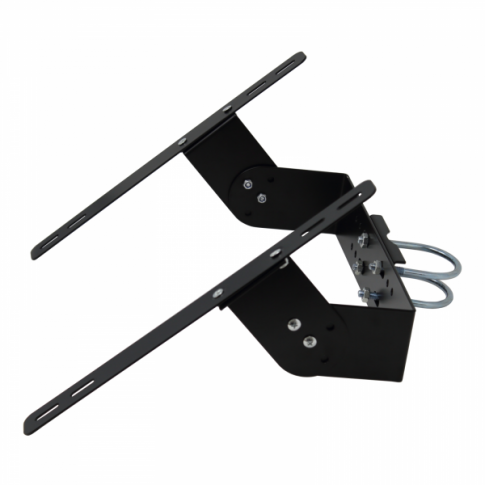

Adjustable pole and wall mounting bracket for solar panels up to 550mm wide

Description

This set includes:

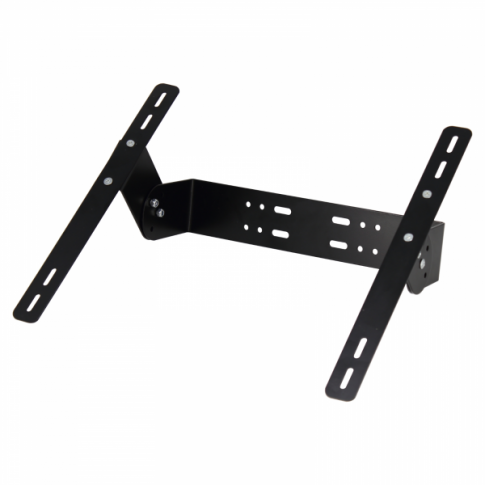

• 1 x Wall bracket
• 1 x Pole bracket

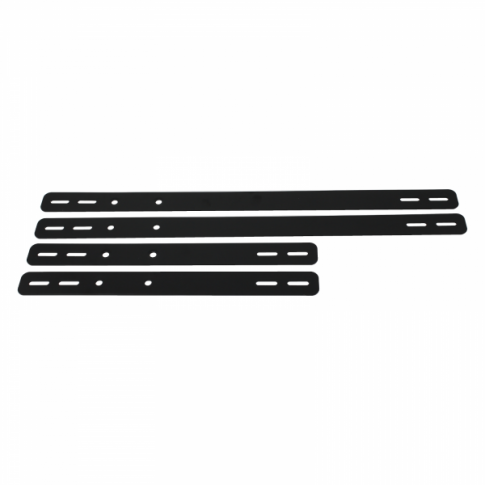

• 2 x Sets of solar panel brackets (365mm and 555mm)
• 1 x Screw accessories set

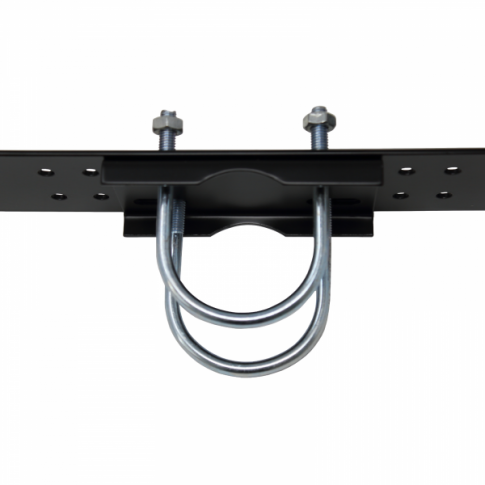

• 2 x Pole clamps

Key features:

• 2 sizes of brackets for different sizes of panels.
• Suitable for mounting solar panels from 200mm to 800mm in height and up to 550mm wide (this may require additional mounting holes to be drilled onto the panel frame).
• Quick and easy to install.
• Suitable for various flat surface, wall, or pole-mounted fixed installations.
• An adjustable angle allows for the panel to absorb sunshine more efficiently.
• Made from stainless steel (total weight: 12kg).
• Sleek black design.

Click on the Installation tab for more information.

Specifications

0

Installation

Installation is easy – Simply bolt the chosen bracket size into the wall bracket. Use the nuts and bolts to fix the panel to the mount and use the screws to mount the bracket to the selected surface. Or if a pole mount is required, attach the pole bracket to the wall bracket using the pole clamps. (Please see documents tab for a guide)

Documents and links

Technical drawing of the adjustable pole and wall mounted bracket (MBRPOLE2)
