100W Monocrystalline Solar Panel With 5M Cable – Spa-100M

Description

This waterproof, affordable, high efficiency Photonic Universe 100W monocrystalline solar panel is perfect for permanent outdoor use to provide free electricity to charge a 12V battery to power hundreds of devices and electrical appliances.

The long-lasting monocrystalline solar cells and the tough, sealed, aluminium frame will provide years and years of consistent, free power. The waterproof design ensures that the panel can be used in all weather conditions.

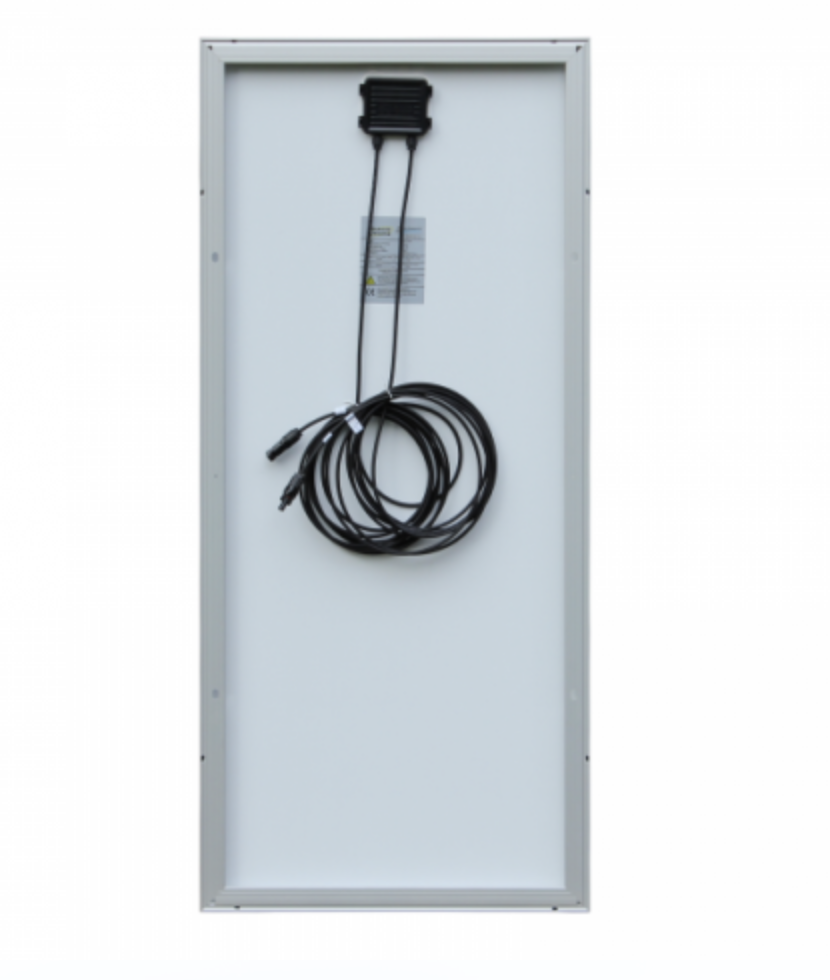

The panel is fitted with 5m of special solar cable which can work at high roof temperatures, with minimum power losses. A pair of male / female MC4 connectors are crimped on the end of cable for easy connection to other solar panels, your existing system or 4mm extension cable. The MC4 connectors can also be cut off when wiring to the screw terminals of a solar charge controller.

Each individual solar panel is thoroughly tested to the highest quality standards, and labelled with a unique serial number for further quality control and increased warranty protection.

Several of these panels may be connected in parallel or series to generate extra power for your needs.

If you are planning to use this solar panel to charge

Solar panel specifications:

• Peak power: 100W
• Maximum power voltage: 19.3V
• Maximum power current: 5.18A
• Open circuit voltage: 22.9V
• Short circuit current: 5.56A
• Power allowance range: 0~+3%

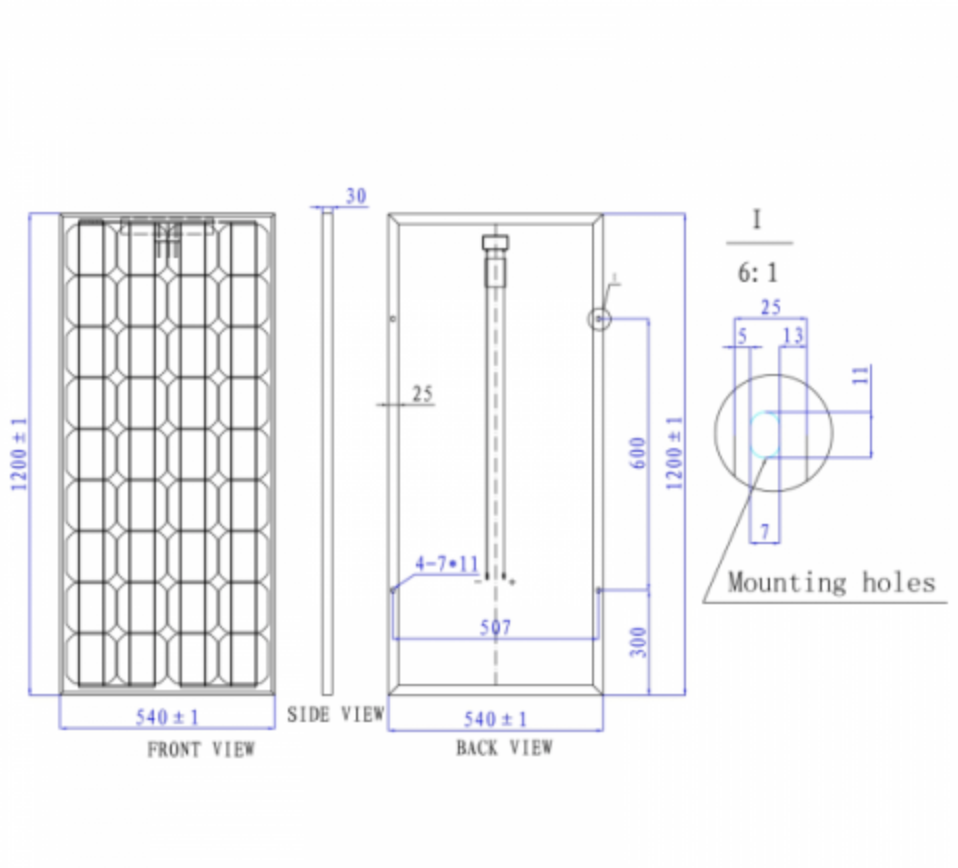

• Dimensions: 1200 x 540 x 35 mm
• Weight: 8.5 kg
• 4 mounting holes
• 2 x 5m of high quality single core solar cable (4.0mm² cross section) with MC4 connectors attached
