200Ah 12V TBB Power Lithium Iron Phosphate Battery With Heating & 300A Bms For Leisure, Solar, Wind And Off-Grid Applications

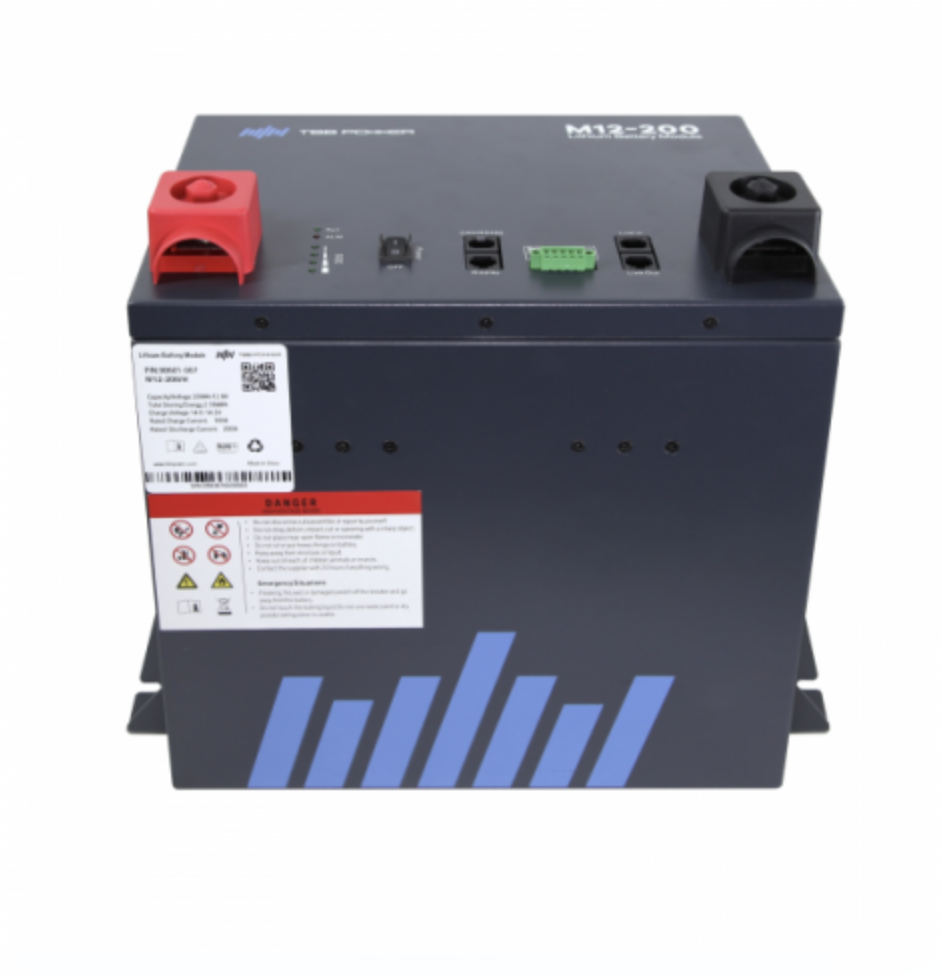

200Ah 12V TBB Power Lithium Iron Phosphate Battery With Heating & 300A Bms For Leisure, Solar, Wind And Off-Grid Applications - Image 2

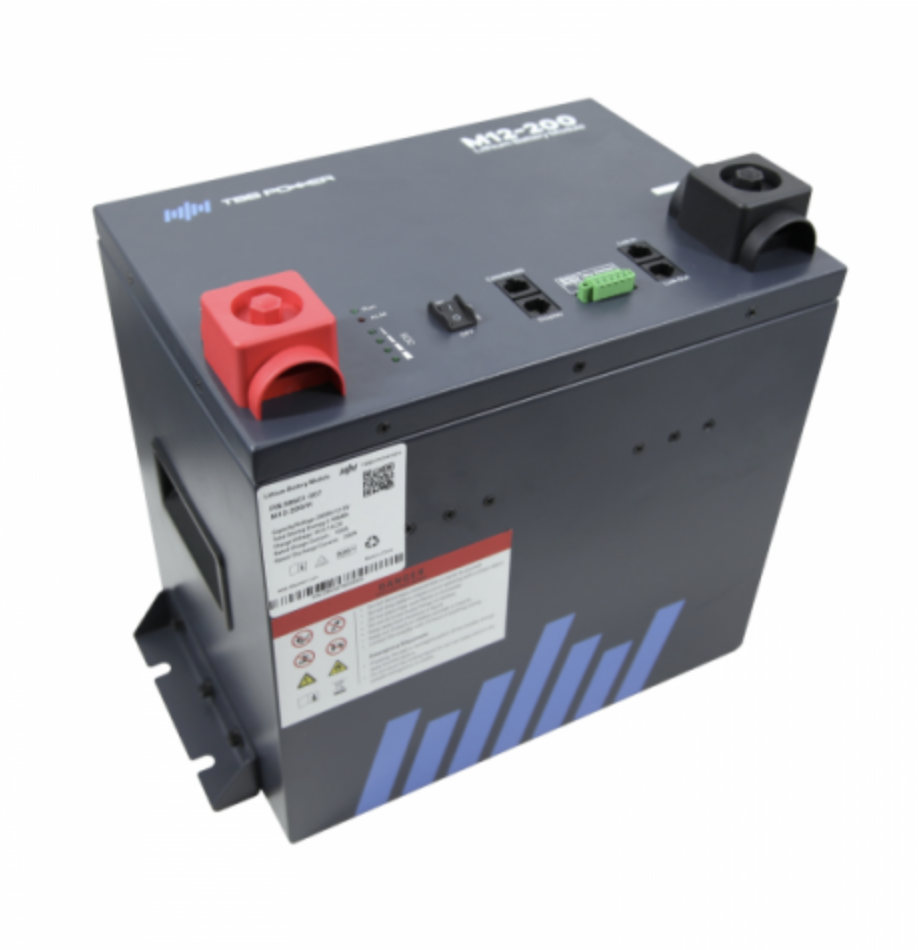

200Ah 12V TBB Power Lithium Iron Phosphate Battery With Heating & 300A Bms For Leisure, Solar, Wind And Off-Grid Applications - Image 3

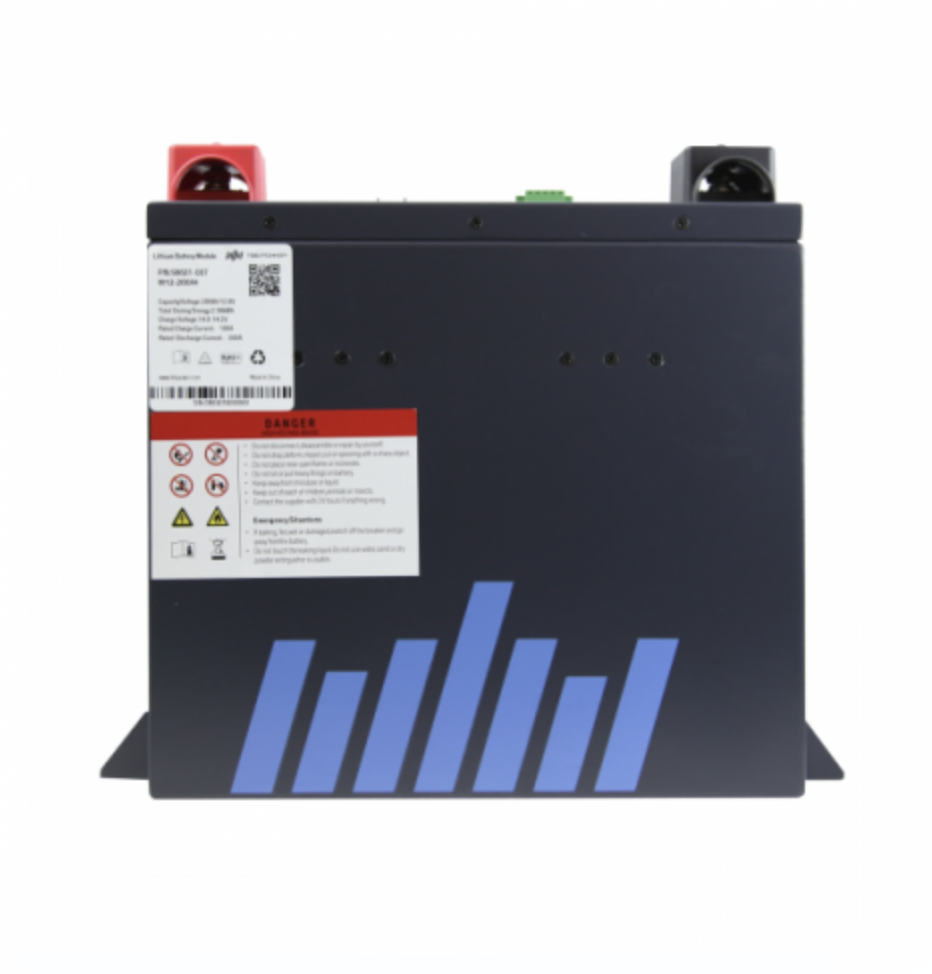

200Ah 12V TBB Power Lithium Iron Phosphate Battery With Heating & 300A Bms For Leisure, Solar, Wind And Off-Grid Applications - Image 4

200Ah 12V TBB Power Lithium Iron Phosphate Battery With Heating & 300A Bms For Leisure, Solar, Wind And Off-Grid Applications

Name: 200Ah 12V TBB Power Lithium Iron Phosphate Battery With Heating &amp; 300A Bms For Leisure, Solar, Wind And Off-Grid Applications
SKU: TBB-M12200
Availability: OutOfStock

SKU: TBB-M12200

£1,199.99 inc. VAT

Rated 0 out of 5

Key Benefits of the TBB-M12200

Long Cycle Life: Up to 3,000 cycles at 25°C, 0.5C charge/discharge rate, far surpassing traditional lead-acid batteries.
High-Performance BMS: Provides comprehensive protection, including:
- Overcharging & over-discharging
- Over-current & short circuits
- High & low-temperature protection
- Cell balancing & cycle life tracking
High Discharge Capacity: Supports a maximum 300A discharge current for high-power applications.
Parallel Expandability: Supports up to 8 units in parallel, increasing total capacity for large-scale energy storage.
Automatic Wake-Up Function: When an external charging voltage >14V is detected in shutdown mode, the battery automatically activates, allowing charging while preventing discharge.
Optional MEH-B Display Panel: By connecting the optional TBB-MCK remote meter to the battery, this enables extra monitoring and control features such as battery switch control and real-time monitoring of voltage, current, and State of Charge (SOC).
Low Power Consumption:
- <50mA standby power consumption when active
- <0.1mA ultra-low standby draw when powered off
Wide Operating Temperature: Functions in extreme conditions from -30°C to +60°C, ensuring reliable performance.
Integrated Low-Temperature Heating: When connected to an external power source (mains, solar, or vehicle engine), the built-in heating system automatically raises battery temperature for safe charging and discharging. Heating from -20°C to +5°C takes approximately 90 minutes.
Compact & Lightweight: Offers high energy density, reducing weight and saving space compared to lead-acid alternatives.

Out of stock

Delivery

✓Free UK mainland delivery on this order (exclusions apply)
⏱Order before 2pm, Monday to Friday and we start processing it the same day
✉We email you tracking as soon as it leaves us

Description

LIFEPO4 Batteries

What is the TBB-M12200?

The TBB-M12200 is a high-performance 200Ah 12V Lithium Iron Phosphate (LiFePO4) battery, designed by TBB Mobile for safe, efficient, and long-lasting energy storage. Featuring a built-in 300A BMS, low-temperature heating function, and parallel expandability, it is an ideal solution for off-grid power, marine applications, and vehicle energy storage.

With its intelligent battery management system (BMS), the TBB-M12200 actively monitors, protects, and optimizes battery performance, ensuring stable operation and extended lifespan.

Key Benefits of the TBB-M12200

Long Cycle Life: Up to 3,000 cycles at 25°C, 0.5C charge/discharge rate, far surpassing traditional lead-acid batteries.
High-Performance BMS: Provides comprehensive protection, including:
- Overcharging & over-discharging
- Over-current & short circuits
- High & low-temperature protection
- Cell balancing & cycle life tracking
High Discharge Capacity: Supports a maximum 300A discharge current for high-power applications.
Parallel Expandability: Supports up to 8 units in parallel, increasing total capacity for large-scale energy storage.
Automatic Wake-Up Function: When an external charging voltage >14V is detected in shutdown mode, the battery automatically activates, allowing charging while preventing discharge.
Optional MEH-B Display Panel: By connecting the optional TBB-MCK remote meter to the battery, this enables extra monitoring and control features such as battery switch control and real-time monitoring of voltage, current, and State of Charge (SOC).
Low Power Consumption:
- <50mA standby power consumption when active
- <0.1mA ultra-low standby draw when powered off
Wide Operating Temperature: Functions in extreme conditions from -30°C to +60°C, ensuring reliable performance.
Integrated Low-Temperature Heating: When connected to an external power source (mains, solar, or vehicle engine), the built-in heating system automatically raises battery temperature for safe charging and discharging. Heating from -20°C to +5°C takes approximately 90 minutes.
Compact & Lightweight: Offers high energy density, reducing weight and saving space compared to lead-acid alternatives.

Advanced Protection Features

The TBB-M12200 is designed with multiple layers of safety for ultimate reliability:

Short Circuit Protection
Over-Current Protection
Battery Low Voltage & High Voltage Protection
Cell Low Voltage & High Voltage Protection
Discharge & Charging Temperature Protection
BMS Circuit Over-Temperature Protection
External Input Overvoltage Protection

The TBB-M12200 is an advanced energy solution built for durability, efficiency, and safety, making it the perfect long-term power investment for off-grid applications, marine vessels, and vehicle energy storage.
