2kW Complete Off-grid Solar Power System with 2 x 430W Sharp solar panels, 2kW hybrid inverter and 2 x 100Ah lithium batteries

Description

This Photonic Universe 860W 24V Complete Off-grid Solar Power System is the perfect ready-to-use kit for off-grid applications requiring a reliable and constant source of power for household appliances or industrial equipment in areas without access to or without stable mains electricity. This kit can provide power to small/medium household or office appliances such as LED lighting, TV, radio, computer, printer or a fridge. This may vary significantly according to the location and season.

This complete off-grid kit has been expertly designed to maximise efficiency and output and therefore comes equipped with some of our most premium quality products; including two monocrystalline Sharp solar panels and a state-of-the-art Iconica hybrid power inverter – an intelligent combination of a high efficiency MPPT solar charge controller, pure sine wave inverter and smart mains battery charger in one single unit.

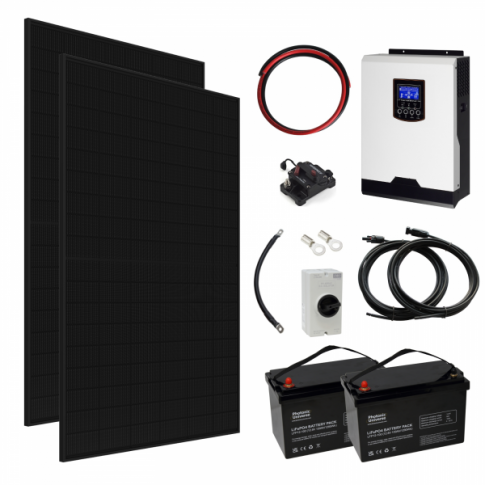

Kit includes:

• 2 x 430W Sharp NU-JC430B Full Black Monocrystalline Solar panels with high-efficiency TOPCon cells
• Iconica Hybrid 2000W 24V pure sine wave inverter
• 2 x 100Ah 12V Photonic Universe Lithium leisure battery
• 100A fuse or circuit breaker
• A pair of 10m 6mm² solar extension cables with MC4 connectors
• 1m of 25mm² red tinned copper battery cable
• 1m of 25mm² black tinned copper battery cable

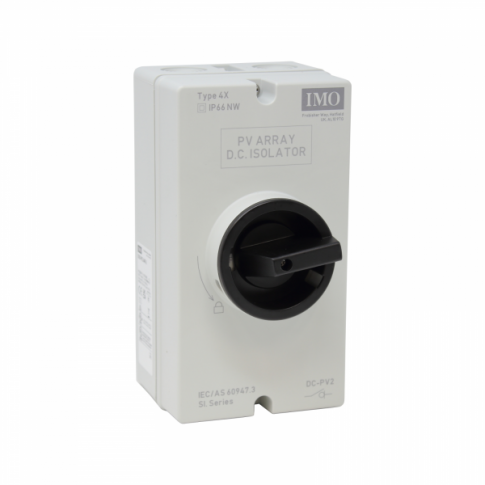

• IMO 16A DC Isolator Switch – 2 Pole
• Battery linking cable
• Loose ring terminals

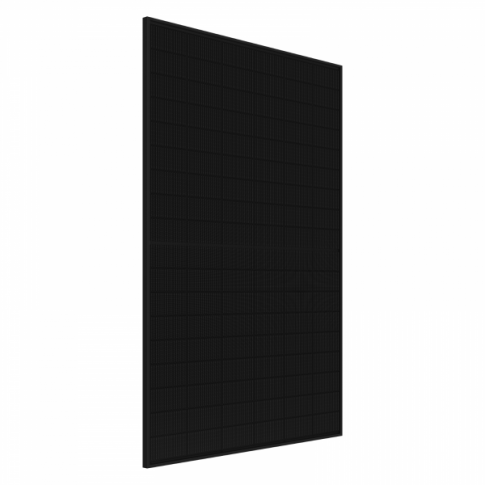

2 x 430W Sharp NU-JC430B Full Black Monocrystalline Solar panel:

The system includes two Sharp NU-JC430B Full Black Monocrystalline Solar Panels. The panels features advanced TOPCon cell technology for excellent performance in high temperatures, low light, and shaded conditions. Their IP68-rated construction is resistant to PID, salt mist, ammonia, snow, dust, and sand, ensuring dependable operation even in the harshest environments. Backed by up to 25 years product warranty (EU) and 30 years performance warranty, these

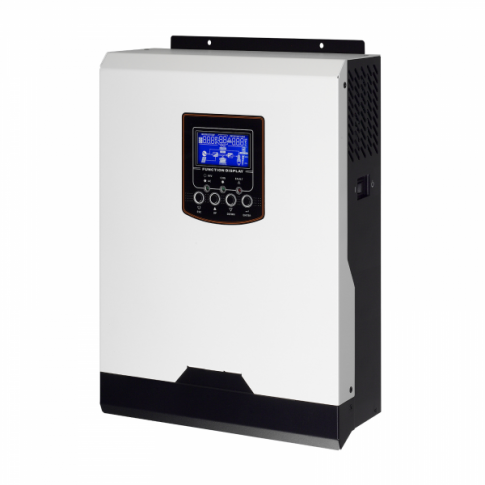

2000W 24V Iconica Hybrid Inverter:

This inverter intelligently combines the functions of a 2000W pure sine wave inverter, 40A MPPT solar charge controller and a 25A smart battery charger in one single unit:

1. 2000W 24V Pure sine wave inverter: Converts DC current from the solar panels into 230V AC mains electricity, to run various household appliances such as a TV, laptop, lighting, fans etc. Able to generate 2000VA of continuous power with a strong peak power handling capability of up to 4000VA (to start appliances with electric motors). This inverter is a pure sine wave type, which easily surpasses modified sine wave inverters in terms of efficiency and compatibility with a wider range of appliances.

2. Inbuilt 40A MPPT solar charge controller: The high efficiency MPPT controller regulates the input from the solar panels to the batteries or to a load, with a full range of safety functions including protection against overcharge, overheating, reverse current etc. The controller operates at up to 98% efficiency to extract the maximum possible power from the solar array.

3. Enhanced 25A Smart battery charger: Designed to enable safe and efficient unattended charging of the batteries from a mains power source or generator, with full overcharge protection and multiple charging stages.

Additional features: This model also features an Uninterrupted Power Supply (UPS), and can accept input from the solar panels, mains power/ a generator and the batteries – either from a single or combination of input sources.

The inverter is supplied with a PC connection cable and PC software CD for convenient viewing of important system information, and can also be connected to a Wi-Fi connection kit (purchased separately) to unlock access to email status updates for the inverter, remote system monitoring from any location and much more.

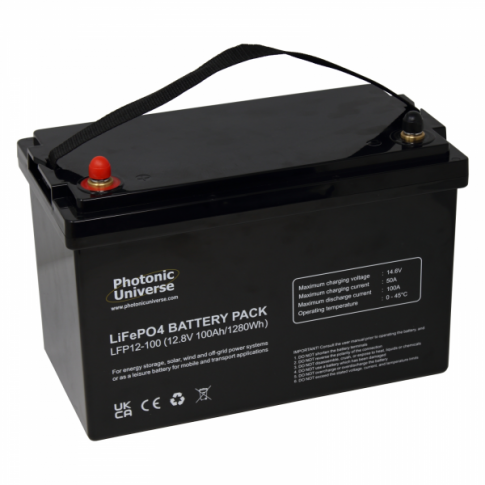

2 x Photonic Universe 100Ah Lithium Battery:

The LFP12-100 is a high-performance 100Ah 12V Lithium Iron Phosphate (LiFePO4) battery, offering exceptional reliability, safety, and long service life. Unlike traditional lead-acid batteries, it features a built-in Battery Management System (BMS) that actively monitors and protects the battery for safe and efficient operation.

Additionally, the LFP12-100 includes Bluetooth connectivity via the XiaoXiangElectric app (available on IOS and Android), allowing users to monitor and manage battery performance in real time

Additional items:

This kit also includes 1m positive and negative 25mm² tinned copper battery cables with loose ring terminals for connecting the inverter to the batteries, a 100A fuse or circuit breaker for use between the hybrid inverter and the batteries, 10m solar extension cable with MC4 connectors to connect to the existing 1.25m of solar cable fitted to the solar panels, DC isolator switch for use between the hybrid inverter and the solar panels, and battery linking cable to connect the batteries together.

Click on the Details and Specifications tab for more information about this kit.

Specifications

Solar panel specifications (per solar panel):

• Peak power: 430W
• Maximum power voltage: 32.73V
• Maximum power current: 13.14A
• Open circuit voltage: 39.09V
• Short circuit current: 14.01A
• Power tolerance: 0/+5%
• Dimensions: 1722 x 1134 x 30 mm
• Weight: 20.7 kg
• Mounting holes for ease of installation
• 2 x 1.25m of high-quality single core solar cable
• Male and female MC4 waterproof connectors

Hybrid inverter specifications:

• Nominal battery voltage: 24V
• Continuous power output: 2000W / 2000VA
• Surge power: 4000VA
• Output voltage: 230V AC
• Output frequency: 50Hz /60 Hz
• Output waveform: Pure sine wave
• Maximum solar input power: 1000W
• Maximum open circuit solar input voltage: 102V
• Maximum solar charging current: 40A
• MPPT operating voltage range: 30V – 80V
• Maximum mains AC charging current: 25A
• Maximum combined charging current: 60A
• Peak efficiency: 93%
• Operating temperature: -10C to 50C
• Supplied with:
  • 1.5m AC power cable with 3-pin UK plug
  • PC connection cable and PC software CD
• Size: 32 x 22.5 x 8.8 cm
• Weight: 5.5 kg

Battery specifications (per battery):

• Nominal voltage: 12.8V
• Nominal capacity: 100Ah
• Nominal energy: 1280Wh
• Life cycle: 6000 cycles @80% DoD, at 25°C
• Recommended charge voltage: 14.6V
• Maximum charge current: 50A
• Recommended charge current: 20A
• Maximum discharge current: 100A
• Operating charge temperature: from 0°C to +45°C
• Operating discharge temperature: from -20°C to +55°C
• Humidity: 5-95% (RH)
• Altitude: <4000m
• Size: 339 x 185 x 218 mm
• Weight: 12kg

Please note: due to our warehouse arrangements, the kit accessories may be shipped from a different warehouse to the solar panels, hybrid inverter and batteries, and therefore delivered in a separate package.

The solar panel is covered by up to a 25-year product guarantee provided by Sharp Electronics.  The batteries are covered by a 5 year repair or replacement warranty provided by Photonic Universe. The hybrid inverter is covered by a 1 year manufacturer warranty. In the unlikely event that a defect is found and confirmed during this period, we guarantee that we will repair or replace defective items (at our discretion). For more information please refer to our Terms and Conditions.

In addition, solar cells are guaranteed to produce at least 99% of nominal power in the first year after purchase and less than 0.4% degradation of nominal power each year after until 30 years after purchase, for a minimum of 87.5%.

For installation advice, please click on the Installation tab.

Installation

A wiring diagram for this off-grid solar system is available to download in the 'Documents' tab. Please refer to this diagram during wiring and installation.

If you are unsure as to whether 2000W output power is sufficient for your appliances, please refer to our table of typical power consumption of domestic appliances.

If you need help with installation or have any technical questions we can provide FREE support – please contact us by email or phone (see Contact Us page for more information).

Documents and links

The following documents are available to download:

Datasheet for Sharp NU-JC430B 430W monocrystalline solar panel (SRP-430B)

Installation Guide for Sharp NU-JC430B 430W monocrystalline solar panel (SRP-430B)

User manual for Iconica IC-BM2000-24 hybrid power inverter

User manual for 'WatchPower' PC software for Iconica IC-BM2000-24

System wiring diagram for Photonic Universe 860W 24V Complete Off-grid Solar Power System KIT2-2K
