TBB Power Mezzo Iii Master Power Module With 30A Ac Charger, 30A Mppt Solar Charger, Vcr And Digital Switching, Including Harness

Description

Mezzo

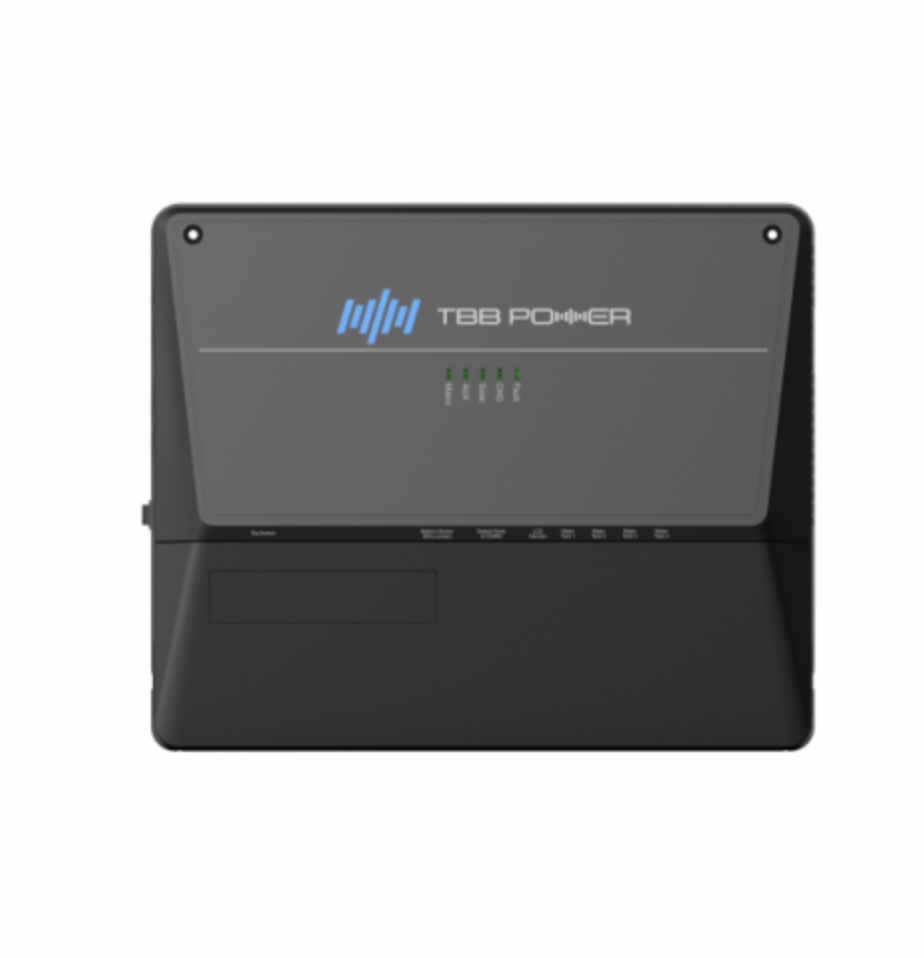

The MZ3-EMP30D is a fully integrated power management module designed for a MEZZO III system. Combining multiple functions into a single, compact unit, it simplifies energy management with advanced features, precise monitoring, and smart control capabilities.

The MZ3-EMP30D combines the following functions into a single box:

• 30A AC Charger.
• 30A MPPT Solar Charger.
• Vehicle Charger Relay (VCR): 60A continuous, 100A for 20 minutes.
• Smart Sensor Compatibility: Gas, levelling, TPMS, and more.
• Water Tank Measurement: Supports up to 4 tanks.
• Smart DC Load Management: Multiple outputs for tailored control.

Key Features:

Smart Battery Charger

• 12V 35A capacity (30A charging current).
• Multi-stage adaptive charging algorithm for optimised battery health.
• Active Power Factor Correction (PFC) for efficient charging.
• Temperature compensation charging to adapt to environmental conditions.
• Float charge support for starter battery.

Integrated Solar Charge Controller

• Supports both PWM and MPPT charging with a 30A capacity for solar energy systems.

Comprehensive Outputs and Load Management

• 15 built-in fused outputs for smart DC load control.
• 5 relay-controlled outputs for devices like water pumps and lighting.
• 3 dimmable outputs for adjustable lighting solutions.
• 6 constant-alive outputs and 1 permanent output for continuous power needs.

Robust Vehicle Charger Relay (VCR)

• Supports 60A continuous current and 100A for 20 minutes.

Smart Monitoring and Protection

• Built-in shunt for precise battery measurement.
• Battery low voltage protection to prevent deep discharge.
• Built-in battery switch for isolating the battery during storage.
• Supports 4 water tank sensors for comprehensive water level monitoring.

Advanced Communication Capabilities

• Built-in Master Bluetooth for connecting to Bluetooth sensors.
• RF communication for wireless switches.
• Compatible with RS485 and CAN communication protocols.

Sensor and Measurement Compatibility

• Supports smart sensors for gas detection, levelling, TPMS, and more.
• Includes water connectors and screw terminals for easy integration.

High-Quality Build

• Features automotive-class connectors for durability and reliability.
• Designed for precise and efficient performance in challenging environments.

The MZ3-EMP30D offers unparalleled functionality, making it the ultimate all-in-one solution for energy storage, management, and control.

Supplied with a 0.2m batt
