Pair of adjustable metal brackets for tilting a solar panel (variable length 390-670mm)

Description

Key features:

• Suitable for mounting a solar panel at a 10-60 degrees angle to the surface
• Adjustable length of 390-670mm allows you to choose the best angle for the solar panel depending on the season – ideal for maximising performance
• Rubber pads and screws included for fixing to the surface in a waterproof way
• Suitable for fixed installations on roofs and flat surfaces

Please note:

• For windy areas and large solar panels, an additional pair of brackets is recommended for added strength and reduced pressure on the solar panel frame.
• These brackets are unsuitable for solar panels with a frame depth of less than 30mm.
• The given range of angle adjustability (10 – 60°) is the maximum possible range, which will vary depending on the initial fixing position of the brackets on the mounting surface in relation to the frame of the solar panel. For example, if the base of the brackets is fixed to the mounting surface 'outside' of the solar panel area, the solar panel will be adjustable within a range of narrow angles (e.g. 10-20°). If fixed to the mounting surface 'within' the solar panel area, the solar panel will be adjustable within a range of wider angles (e.g. 50 – 60°).

Click on the Installation tab for more information.

Specifications

0

Installation

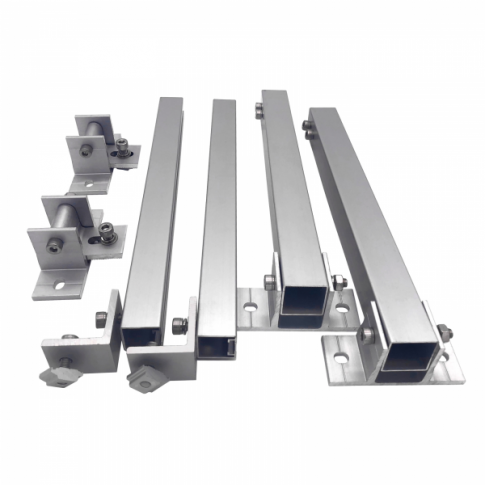

Installation is easy – Simply fix the short supports and long supports onto the frame of the solar panel. Then, mount the short supports on to the mounting surface using the rubber pads and screw set provided. Adjust the length of the long supports depending on the chosen angle of the solar panel, and mount these to the surface using the rubber pad and screw set.

Please note these brackets are unsuitable for solar panels with a frame depth of less than 30mm.

Documents and links

The following documents are available to download:

User manual for Photonic Universe adjustable tilting metal brackets (MBRTILT01)

Tilt angle calculator for Photonic Universe adjustable tilting metal brackets (MBRTILT01)
