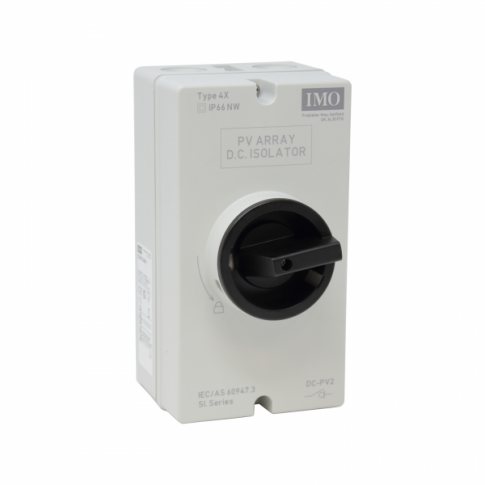

IMO 25A DC Isolator Switch – 2 Pole (Single String) IP66 Enclosed, 600VDC

Name: IMO 25A DC Isolator Switch - 2 Pole (Single String) IP66 Enclosed, 600VDC
SKU: IMO25A-2P
Availability: InStock

SKU: IMO25A-2P

£59.99

Rated 0 out of 5

Manual 25A switch-disconnector for isolation of solar DC input from the rest of the system. Features IP66 protection rating and 2 pole design.

10 in stock

Delivery

✓Free UK mainland delivery on this order (exclusions apply)
⏱Order before 2pm, Monday to Friday and we start processing it the same day
✉We email you tracking as soon as it leaves us

Description
Additional information

Description

This high-quality IMO manual 2 pole solar DC isolator switch enables quick and reliable isolation of the solar DC input from the rest of the system. Designed and manufactured to the highest European quality standards.

This is a dual pole, single phase disconnector switch which is lockable in the off position (with an optional padlock), if required. This is an ideal solution for easy-to-reach disconnection of your solar power supply from the inverter/regulator.

The switch is highly durable and totally insulated with an IP66 protection rating, making it ideal for harsh environment applications. The unit features four mounting holes for ease of installation.

Click on the Details and Specifications tab for more information

Specifications

Specifications:

MPN: SI25-PEL64R-2
Rated current: 25A
Dimensions: 180 x 98 x 107mm
Weight: 0.5 kg
2 Pole (1 string)
Grey Body with Black switch
Switching times of less than 5ms
Rated operating current & voltage (2 poles):
- 25A @ 300V
- 20A @ 600V
- 15A @ 800V
- 5A @ 1000V
- 1.5A @ 1500V

This product is covered by a 1-year manufacturer warranty. For more information please refer to our Terms and Conditions.

Installation

If you need help with installation or have any technical questions we can provide FREE support – please contact us by email or phone (see Contact Us page for more information).
