Name: 200A 12V/24V/48V surface and panel mount battery isolator switch with M8 terminals for 2 batteries
SKU: BS2-200
Availability: InStock

SKU: BS2-200

£19.99

Rated 0 out of 5

Manual 200A DC switch-disconnector for isolation of 2 battery inputs from the rest of the system. Features M8 terminals and mounting holes.

40 in stock

Delivery

✓Free UK mainland delivery on this order (exclusions apply)
⏱Order before 2pm, Monday to Friday and we start processing it the same day
✉We email you tracking as soon as it leaves us

Description
Additional information

Description

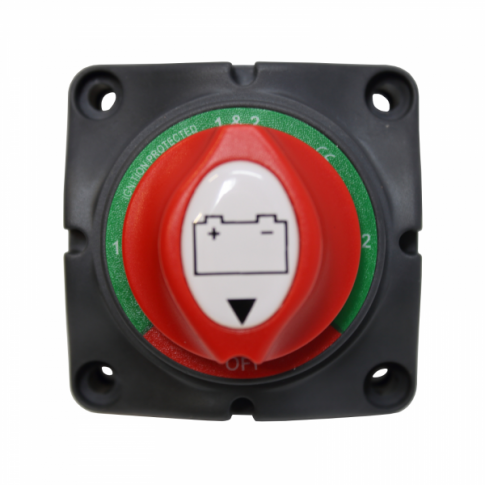

This high-quality 200A 12V/24V/48V manual battery isolator switch for 2 batteries enables quick and reliable isolation of the battery inputs from the rest of the system. Available switch positions are 1, 1&2, 2 and OFF and these positions are marked on the switch bezel.

When in the "1" position, battery 1 will be connected to the system but not battery 2, in the "1&2" position, both batteries will be connected to the system, when in the “2” position, battery 2 will be connected to the system but not battery 1, and when in the "OFF" position, both batteries will be disconnected from the system.

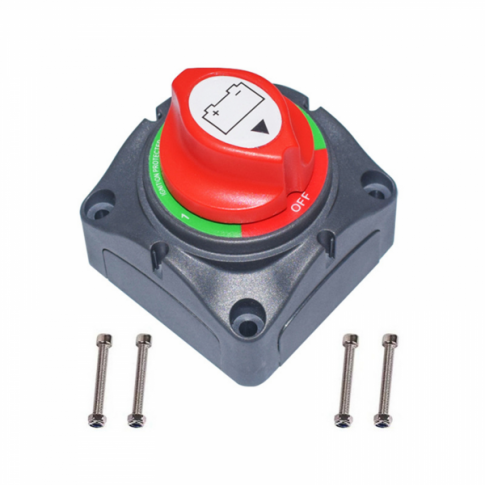

Designed and manufactured to the highest quality standards, this unit is an ideal solution for easy-to-reach disconnection of your battery power supply from the inverter/regulator. Additionally, the unit features M8 screw terminals and 4 mounting holes and for ease of installation.

Click on the Details and Specifications tab for more information

Specifications

Specifications:

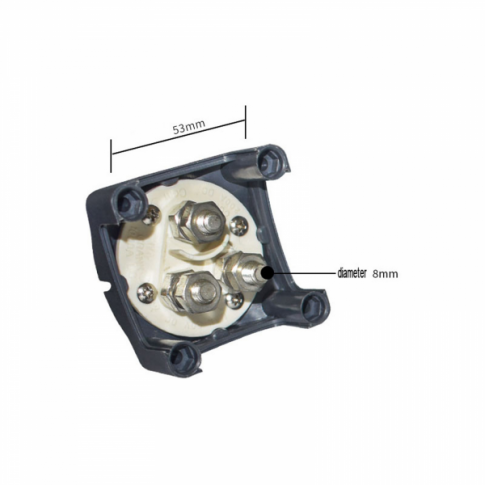

Screw terminals: M8
Rated current: 200A

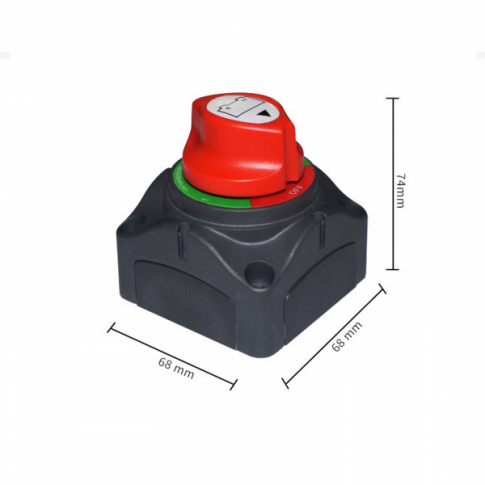

Dimensions: 74 x 68 x 68 mm

This product is covered by a 1-year manufacturer warranty. For more information please refer to our Terms and Conditions.

Installation

If you need help with installation or have any technical questions we can provide FREE support – please contact us by email or phone (see Contact Us page for more information).
