Description

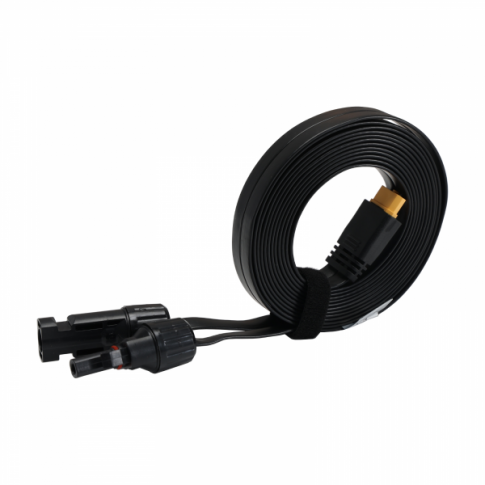

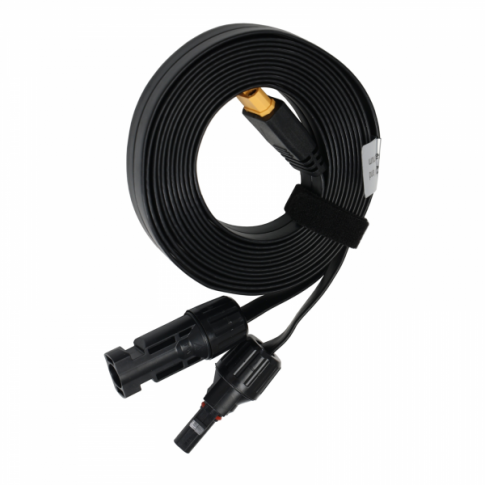

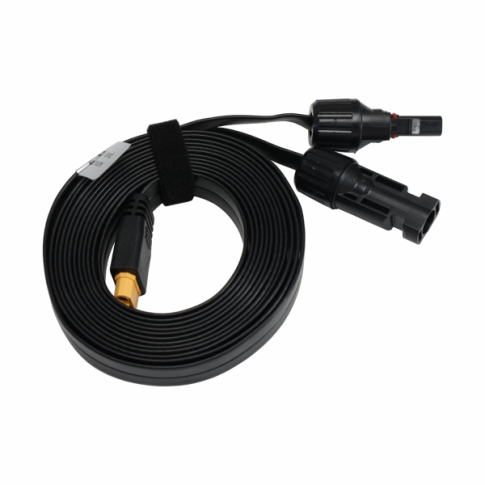

This XT60 to MC4 flat extension cable is designed to provide a reliable and efficient connection between solar panels with MC4 connectors and devices or controllers with XT60 inputs. Featuring a 3-meter length of durable 4.0mm² flat cable, it supports currents up to 27A at voltages up to 24V DC, making it suitable for small to medium solar power systems.
The cable ends with a standard XT60 connector on one side and a pair of weatherproof MC4 connectors (“male” and “female”) on the other, ensuring secure and quick connections for outdoor or portable solar setups.
Constructed with high-quality, UV-resistant materials, this flat cable is flexible, space-saving, and built to withstand harsh outdoor environments.
Ideal for off-grid, portable, and DIY solar applications requiring neat and efficient wiring.
Specifications
Cable specifications:
- Conductor: tinned copper
- Cross section: 4.0mm2
- Conductor resistance: 5.09 Ohm/km (20C)
- Insulation and Jacket: 120C XLPE
- Working temperature range: -40C to +120C
- Certification: TUV
- Outer diameter: 6.1mm
Installation
0
Documents and links
0
XT60 to MC4 3m 4.0mm² Flat Solar Adapter Extension Cable
£34.99
3m XT60 to MC4 flat extension cable with 4.0mm² wire, supporting up to 24V and 27A. Durable, flexible, and ideal for small to medium solar systems.
40 in stock
Delivery
Description
This XT60 to MC4 flat extension cable is designed to provide a reliable and efficient connection between solar panels with MC4 connectors and devices or controllers with XT60 inputs. Featuring a 3-meter length of durable 4.0mm² flat cable, it supports currents up to 27A at voltages up to 24V DC, making it suitable for small to medium solar power systems.
The cable ends with a standard XT60 connector on one side and a pair of weatherproof MC4 connectors (“male” and “female”) on the other, ensuring secure and quick connections for outdoor or portable solar setups.
Constructed with high-quality, UV-resistant materials, this flat cable is flexible, space-saving, and built to withstand harsh outdoor environments.
Specifications
Cable specifications:
Installation
0
Documents and links
0
