Victron VE.Bus Smart Dongle

Description

Photonic Universe is an official distributor of products from Victron Energy – the globally renowned manufacturer of high-quality hybrid power electronics. Victron accessories are designed to add intelligence, control, and flexibility to inverter/charger systems across marine, mobile, and off-grid applications.

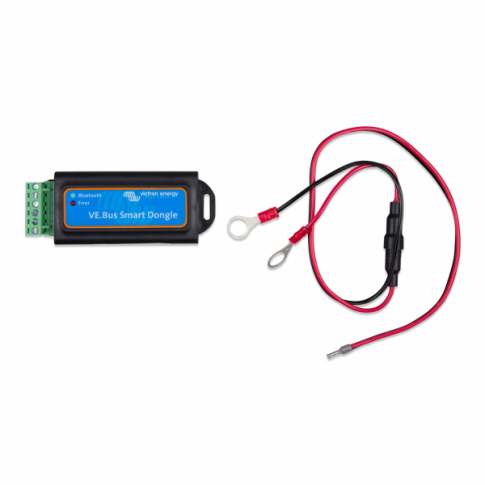

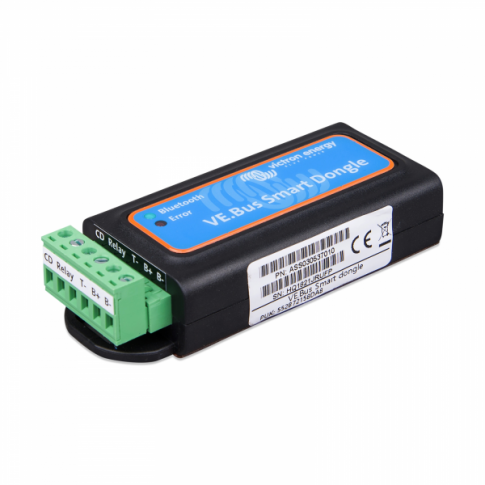

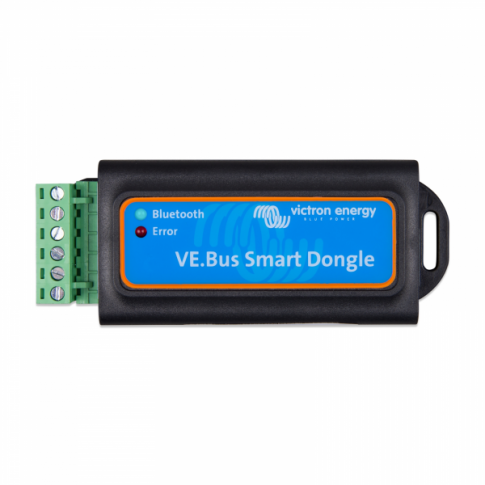

The Victron VE.Bus Smart Dongle is a versatile two-in-one device that combines Bluetooth connectivity for Victron inverter/chargers with voltage and temperature sensing functionality. Compact and easy to install, it is the ideal accessory for those who want to monitor, control, and optimise their power systems directly from a smartphone or tablet.

Key functions:

1. Bluetooth monitoring & control – Acts as a wireless interface for Multi, MultiPlus, MultiPlus-II, MultiGrid, MultiGrid-II, Quattro, and Phoenix VE.Bus inverters. Using the free VictronConnect app, you can:

• Monitor AC and DC parameters
• View device status, alarms, and warnings
• Adjust the AC input current limit
• Switch between On, Off, and Charger-only modes

2. Voltage & temperature sensing – Functions as a voltage and temperature sensor for all compatible inverter/chargers. This ensures safe and efficient charging, especially for lead-acid and lithium battery banks, and allows integration with VE.Smart Networking.

3. Instant Readout feature – Displays inverter/charger key data directly in the VictronConnect device list without needing to connect. Provides at-a-glance diagnostics, including warnings, alarms, and error notifications.

Additional features:

• Flexible system integration – Works with single inverter/chargers, parallel units, and 3-phase systems.
• Optional external temperature sensor – Can use either its built-in sensor or connect to an external one for precise monitoring.
• Great alternative to larger displays – Ideal for caravans, motorhomes, and smaller yachts where full GX devices (such as the Cerbo GX) may not be necessary.
• Simple installation – Connects directly to the VE.Bus port of your inverter/charger, with no complex setup required.

Click on the Details and Specifications tab for more information about this product.

Specifications

Specifications:

• Operating input voltage range: 8 -70VDC
• Current draw (@12V) Bluetooth not connected to VictronConnec:
  • Not joining a VE.Smart network <6mA
  • Joining a VE.Smart network <9mA
• Current draw (@12V) Bluetooth connected to VictronConnec:
  • Not joining a VE.Smart network <7mA
  • Joining a VE.Smart network <9mA
• Operating temperature: -20°C to +50°C
• Dimensions: 106 x 42.5 x 22 mm

Installation

0

Documents and links

The following document(s) are available to download:

User manual for Victron VE.Bus Smart Dongle (VEBUS-DONGLE)

Dimensions for Victron VE.Bus Smart Dongle (VEBUS-DONGLE)
