Victron 300A IP65 12V/24V/48V Battery Monitoring SmartShunt with Inbuilt Bluetooth

Description

Photonic Universe is an official distributor of products from Victron Energy – the globally renowned manufacturer of high-quality hybrid power electronics. Victron Energy products have a longstanding reputation for their outstanding reliability, innovative design and superior build quality.

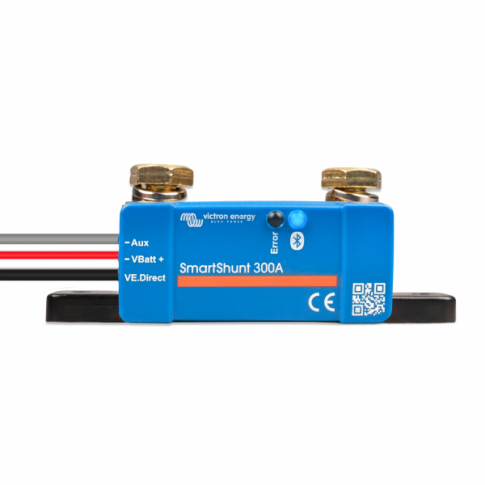

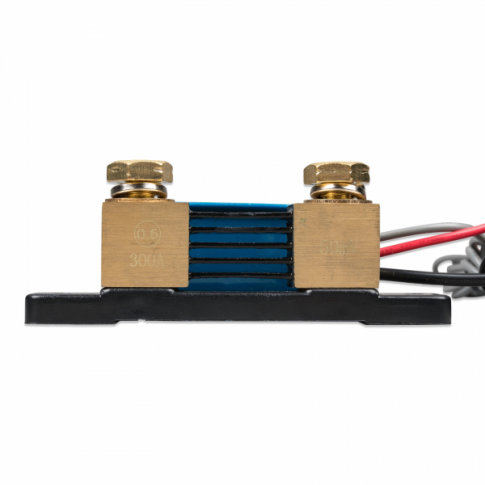

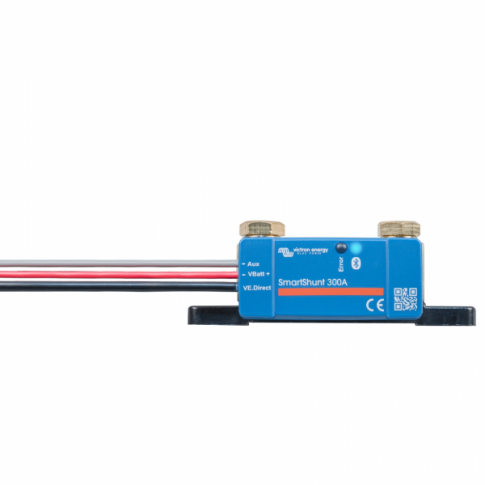

This Victron 300A IP65 VS series SmartShunt is a high-precision battery shunt designed to expertly measure vital charging and performance data for your batteries. With its IP65 rating, it is fully protected against dust ingress and resistant to low-pressure water jets, making it ideal for outdoor and marine applications. This smart model features advanced functions such as Bluetooth communication, a secondary input for optional monitoring of an auxiliary battery bank, and an extremely low current draw from the battery bank (0.7Ah per month for a 12V system). Key statistics—including battery voltage, charge/discharge current, Amp Hours consumed, state of charge, and time-to-go—can be viewed and settings adjusted via the inbuilt Bluetooth using any Bluetooth-enabled mobile device, such as a smartphone or tablet.

Battery data

The SmartShunt measures the vital parameters relating to the battery condition and the energy it receives / provides, and transmits this information via Bluetooth, where it can be viewed by the user (and where some settings can be amended if necessary). This information includes:

• Battery voltage: Displayed for the main battery / battery bank, and also for an optional auxiliary battery which can be connected via the secondary input.
• Battery midpoint voltage monitoring: For battery banks constructed of several individual batteries, the SmartShunt is able to maintain balance by taking the voltage measurements from the midpoint within the bank, and if the voltage deviates from this point of balance, an alarm will be generated. For such battery banks, the voltage value is also displayed for the battery bank as a whole, and additionally, for the 'top section' and 'bottom section' (i.e. 1st half and 2nd half) of the battery bank.
• Battery state of charge: Indicated as a percentage value from 0-100%.
• Battery charging / discharging current and power: The current (A) and power (W) flowing out of the battery (load consumption) are displayed as negative values, while the current and power flowing into the battery are displayed as positive values.
• Battery temperature: The smart monitor can be connected to an optional Victron battery temperature sensor (sold separately). This temperature measurement can be used to adjust available battery capacity as the temperature varies. An alarm will be activated when battery temperature falls outside of the safe range.
• Amp hours consumed: For example, if 12A is drawn from a fully charged battery during a period of 3 hours, the app will show -36.0Ah consumed by the battery.
• Time-to-go: The SmartShunt is able to estimate the approximate length of time that the battery will continue to support the current load, before the battery requires re-charging.

An in-depth data log also records historical data to enable the user to evaluate usage patterns and determine overall battery health. This includes values such as the highest/ lowest recorded voltages (for the main battery and auxiliary battery), deepest recorded discharge, time since last full discharge, cumulative Amp hours drawn, time since last full charge, total energy charged/discharged and many more.

Customisation

The user can set high/low thresholds for battery voltage (either battery), battery state of charge (main battery) or the battery temperature (additional sensor required). If any of the above parameters fall outside of this specified range, the battery shunt will activate an alarm on the connected mobile app.

Advanced communication

This smart battery shunt features inbuilt Bluetooth, enabling the user to wirelessly connect their mobile device to the monitor. Then, using the VictronConnect App on a smartphone or tablet, you will unlock numerous possibilities for advanced programming and remote monitoring of your battery system. A wide range of features are made available, including real-time data transmission, as well as the option to amend battery storage information, program alarms, and set up or join an existing VE.Smart network. Alternatively, the VE Direct USB cable can be used to establish a connection to a non-Bluetooth-enabled PC/laptop.

The VictronConnect app is compatible with most mobile devices and computers, including Android and iOS smartphones, tablets, iPads, MacBooks, Windows PCs/laptops.

Compatibility

This SmartShunt is suitable for use with any 12V, 24V or 48V Lead Acid / Gel / AGM / Lithium battery or battery bank. The maximum admissible nominal current through the shunt is 500A.

Additional items

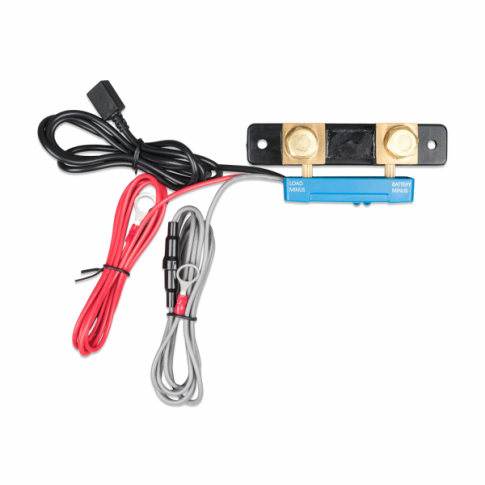

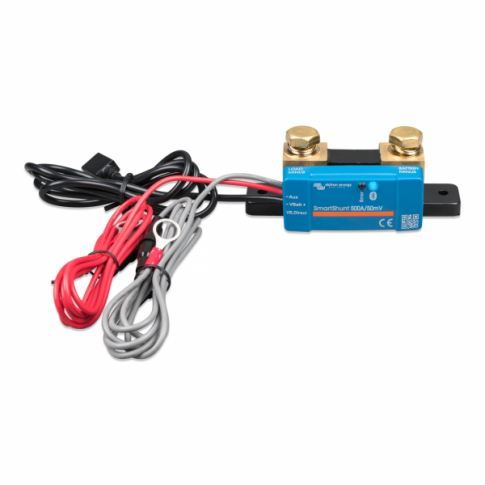

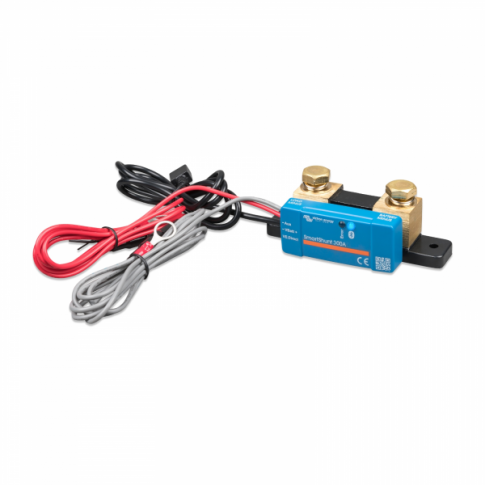

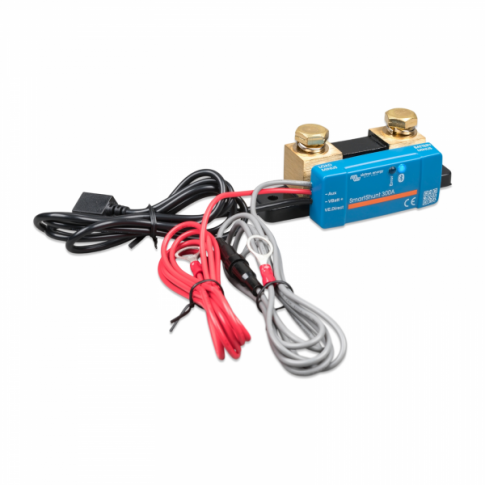

The shunt is also supplied with 1 x 1.5m positive cable with M8 ring terminal and a fuse and 1 x 1.5m grey auxiliary with M8 ring terminal and a fuse to connect the battery shunt to up to two battery banks. Additionally, the shunt is supplied with a black VE. Direct cable to connect the battery shunt to any Victron item with a VE. direct port when Bluetooth communication is turned off.

Click on the Details and specifications tab for more information about this product.

Specifications

System Specifications:

• Nominal battery voltage: 12V / 24V / 48V
• Supply voltage range: 6.5 – 70V
• Input voltage range (Auxiliary battery): 6.5 – 70V
• Current draw: <1mA
• Battery capacity: 1 – 9999Ah
• Input current range: -300A to +300A
• Operating temperature range: -40°C to +50°C
• Voltage measurement accuracy: ±0.3%
• Current measurement accuracy: ±0.4%
• Terminals: M8
• Dimensions: 120 x 44 x 44 mm
• Weight: 300g

Standards:

• Safety: EN 60335-1
• Emission/ Immunity: EN-IEC 61000-6-1, EN-IEC 61000-6-2, EN-IEC 61000-6-3
• Automotive: EN 50498
• IP65 rating

Additional items:

• 1.5m positive cable with M8 ring terminal and a fuse
• 1.5m grey auxiliary with M8 ring terminal and a fuse
• Black VE. Direct cable
• Optional additional temperature sensor (not included): Victron product code ASS000100000

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

Click on the Installation tab for further instructions.

Installation

This unit comes with a detailed user manual which explains connection and operations. A basic installation guide is also available to download in the 'Documents' tab.

Please note: the shunt should be connected on the negative battery wire, close to the battery.

The following video provides a brief introduction to the SmartShunt: https://www.youtube.com/watch?v=0HG4GiH9su8

If you need help with installation or have any technical questions we can provide FREE support – please contact us by email or phone (see our Contact Us page for more information).

Documents and links

The following documents are available to download:

User manual for Victron 300A IP65 12V/ 24V/ 48V SmartShunt (VS300SWP)

Datasheet for Victron 300A IP65 12V/ 24V/ 48V SmartShunt (VS300SWP)
