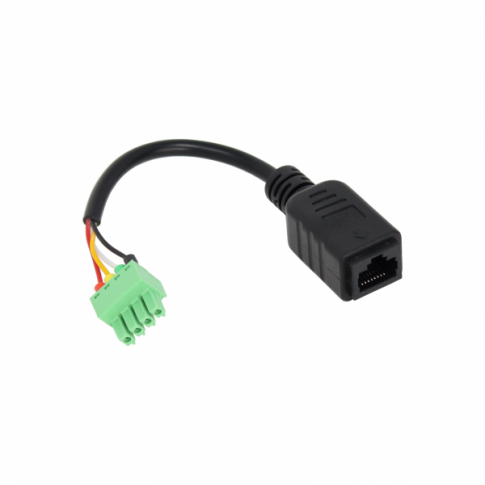

RS485 to RJ45 cable to connect a solar charge controller to a Wi-Fi or Bluetooth module (15cm length)

Description

This 15cm RS485 to RJ45 cable is designed for connecting a solar charge controller to either a Wi-Fi module or Bluetooth module.

The cable is designed for use with DM series solar charge controllers.

By using this cable to set up a connection between your solar charge controller and either a Wi-Fi or Bluetooth adapter, you will unlock a range of exclusive settings on the pairing app which gives you far greater control over your solar system. With access to this vast range of charging parameters, you will be able to:

– Amend the battery type and capacity
– Select charging volts for different charging stages
– Specify the duration of each charging stage
– Create a user-defined battery type with charging parameters specific to your battery (if the pre-existing options are unsuitable)

If you require a longer cable, we also offer the RS485 to RJ45 cable in a 1.5m length.

Click on the Details and Specifications tab for more information about this product.

Specifications

Cable specifications:

• Cable length: 15 cm
• Connection: 1 x RS485, 1 x RJ45
• Compatible with DM series controllers
