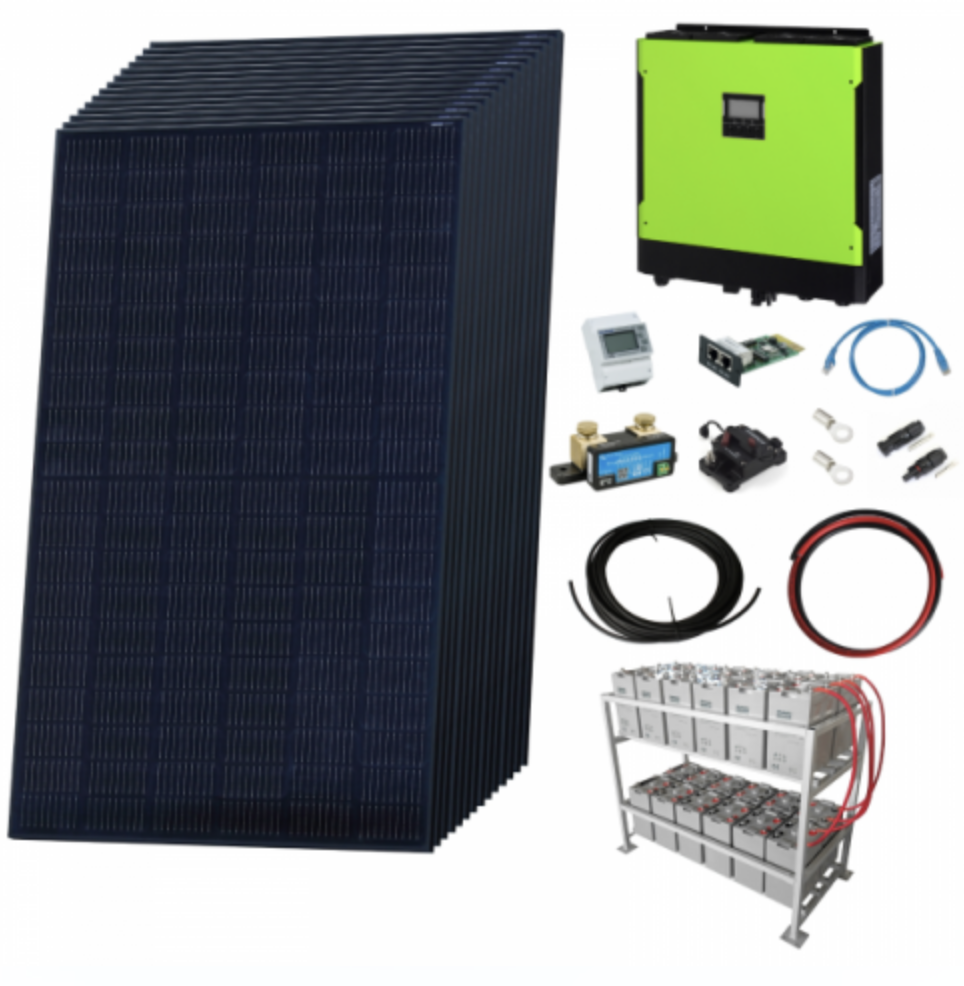

Premium 5.3Kw Grid-Tie Self-Consumption Solar Power Kit With Lg Solar Panels, 5.5Kw Hybrid Inverter And 24Kwh Battery Bank

This kit is designed around the principle of power independence, maximising the capability to use all of the available solar power locally, and so significantly reducing electricity bills. The system includes an energy meter that precisely measures the power flow to appliances, enabling it to match the domestic energy consumption with the self-generated solar energy. This approach maximises the self-consumption of solar energy within the house and minimizes energy export to the grid. The kit only starts exporting energy to the grid when the battery bank is full and the household appliances no longer need additional energy. In such situations, all available excess solar power flows into the public grid.

The innovative inverter operates efficiently in grid-tie, hybrid, off-grid, and UPS modes, ensuring uninterrupted power supply even during mains power cuts. Advanced monitoring features enable users to keep track of the battery bank through a mobile app connected via Bluetooth, with optional Wi-Fi connectivity (sold separately) and remote portal monitoring capabilities available for added convenience.

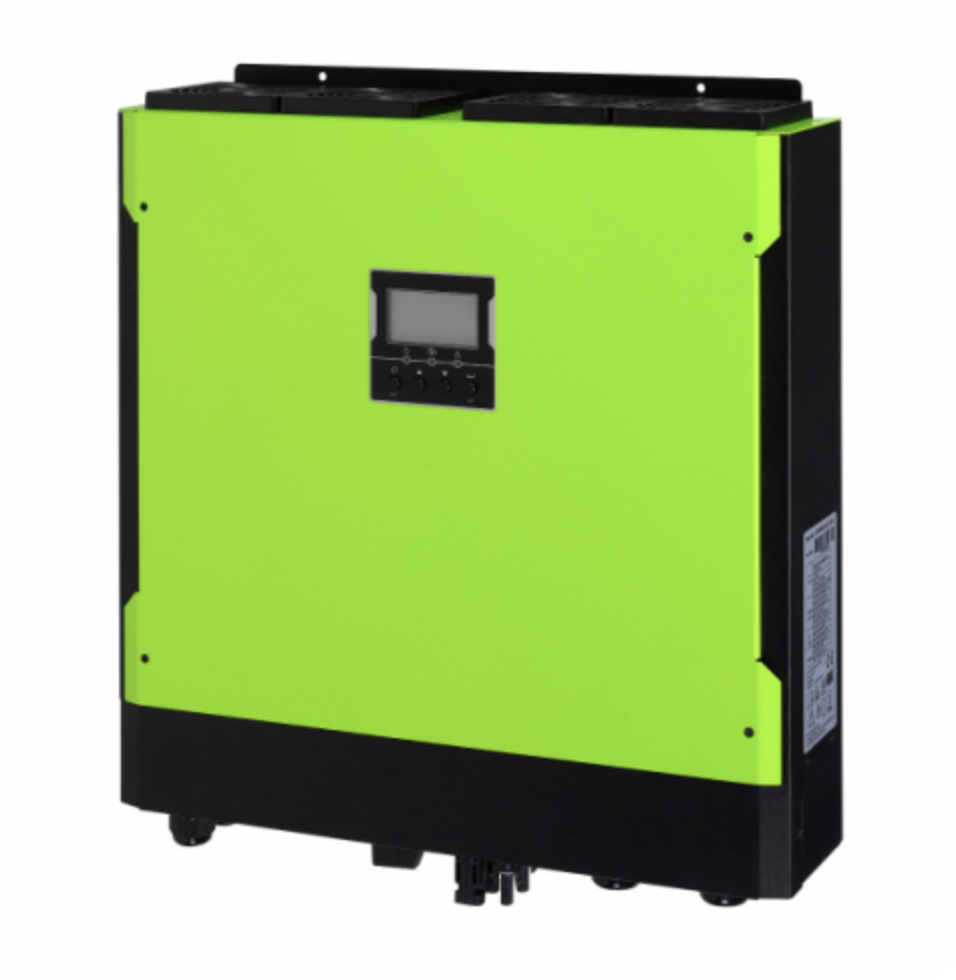

The Iconica 5500W 48V hybrid grid-tie inverter boasts advanced 3-in-1 hybrid functionality, combining a pure sine wave inverter, an MPPT solar charge controller, and a smart mains charger. It offers highly customisable settings for various parameters (max. feed-in power, charging voltages, battery type, etc.) and advanced communication options, including remote monitoring via a Wi-Fi connection kit. Additionally, the inverter supports seamless integration with an energy meter for optimised self-consumption and features an illuminated LCD screen displaying real time data. Compatible with various battery types, this inverter is a versatile and efficient solution for modern energy needs.

The inverter features three main operating modes:

Grid-tie mode: Energy generated by solar panels is fed back to the national grid.

Grid-tie with battery backup: Generated solar power can be used to feed energy back to the grid, supply power to the load and charge the battery.  Mains electricity can also be used to power the load and charge the battery. In this mode the user can configure PV energy supply priority, charging source priority, and load supply source priority. When solar power is not sufficient to power the load, or if mains power is unavailable, the battery will act as a ‘back up’ and continue to power the load (e.g. at night when there is no solar power or during a mains power cut). ‘Peak’ and ‘Off-peak’ times for electricity demand can also be set, in order to prioritise either load power supply or battery charging.

Off-grid mode: Utilises solar energy to power loads or charge batteries without feeding power back to the grid, while still allowing mains power usage if necessary. In this mode the user can configure PV energy supply priority, charging source priority, and load supply source priority.
