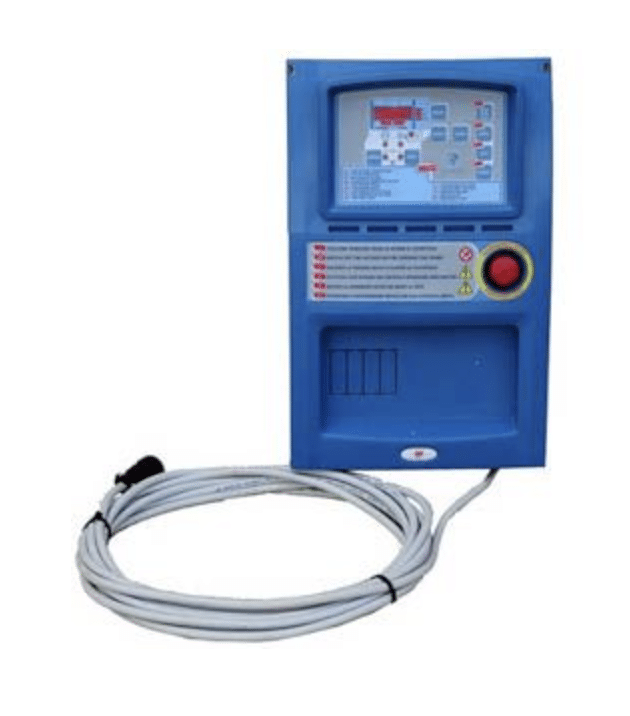

PRA-AMF Pramac ATS / AMF panel for CONN Single Phase Automatic Transfer Switch

Description

This Automatic Transfer Switch is compact, easily configured and has a simple intuitive control panel.

This accessory permits to control all the functions about a generator. It’s built to monitor mono phase or three phase with neutral systems in alternate current; it permits to transfer the user’s load on the generator when the mains voltage is faulty. Conversely, as soon as AMF system detects the power grid, it stops the generator.

Please note this panel is suitable for Pramac generators with the CONN and AMF feature already prewired into the set ONLY. It is not suitable for standard models, you would be responsible to check compatibility prior to purchase

Click here to learn more about the Italian Stallion of Generator Manufacturers: Pramac!

Equipment:

Control and protection unit (DGT) –
Phase detector – Contactor with interblock
Battery charged
Acoustic alarm
8 meters control wiring (with CONNector)
External start stop capability
Emergency stop button

Instrumentation

(DGT):
Mains voltage
Genset voltage
Frequency meter
Hour meter

Alarm & Shutdowns:
Generators voltage out of limits
Battery Voltage out of limits
Low oil Pressure
Fail to start
External shutdown
