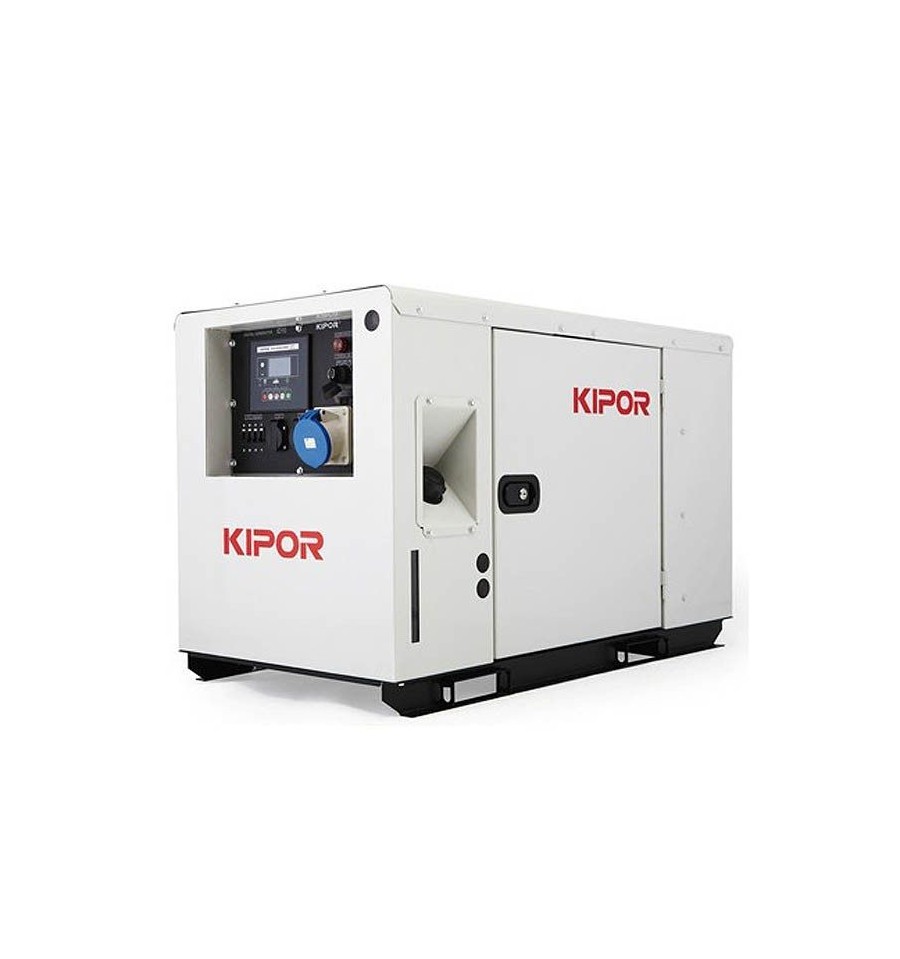

Kipor ID10 Diesel Generator

Description

A Reliable Generator that Lasts

The Kipor ID10 diesel digital generator is a powerful, portable, and quiet generator. The advanced inverter technology ensures that the ID10 produces a stable source of energy with less than 1% variation in voltage and frequency output. The sleek design makes the machine compact, lightweight, and highly efficient. With a running noise of only 70dB(A) at seven meters, it’s easy to have this generator operating in the area without causing much ruckus. The ID10 also monitors a variety of critical operating vitals including low oil pressure, high water temperature, over voltage, low voltage, overload, short circuit, and battery connection. This ensures that the generator receives the appropriate maintenance and lasts a lifetime. If you need a dependable generator to provide 11kVA of power, you can’t go wrong with the Kipor ID10.

The Stationary Kipor ID10 Generator

Model: ID10
Rated Frequency (Hz): 50 60
Rated Output (Kva): 9.5
Max. Output (Kva): 10.5
Rated Voltage(V): 115/230 120/240
Rated Current(A): 82.6/41.3 79.2/39.6
Rated Speed (R/Min): 1700-3000
Model: KD100
Motor Type/Converter Type: Multipolar Nd-Fe-B Permanent Magnet/ IGBT Digital Frequency Converter
Loop Type: Single Phase, Three-Loop
Power Factor (Cosφ): 1.0
Insulation Grade: H
Model: KD373GTi
Type: Three-Cylinder, In-Lined, Four-Stroke, Swirl Chamber, Water-Cooled
Bore×Stroke (Mm): 73×78
Displacement (L): 0.979
Compression Ratio: 22.5∶1
Rated Power [Kw(R/Min)]: 9.8-13.3
Coolant Capacity (Engine Only): 0.925
Lube System: Pressure Splashed
Lube Oil Brand: CD Grade Or SAE 10W-30, 15W-40
Lube Oil Capacity (L): 4.5
Starting System: Electric Starter
Starter Motor Capacity (V-KW): 12V　1.5KW
Charge Motor Capacity (V-A): 14V　35A
Battery Capacity X No. (V-Ah): 12V－45Ah
Fuel Type: O#(Summer), 10#(Winter)-35#(Chillness) Diesel
Genset Fuel Consumption (G/KW.H): ≤340
Noise Level(No Load–Full Load) (7m) Db(A): 57-63
Structure Type: Silent
Overall Dimension（L×W×H): 1250×650×790 Mm
Net Weight (Kg): 285

The Kipor ID10 diesel digital generator is a dependable machine that provides a maximum power of 11 kVA. Powerful, compact, and quiet, the ID10 self-monitors a plethora of essential operating vitals including low oil pressure, high water temperature, over voltage, low voltage, overload, short circuit, and battery connection.
