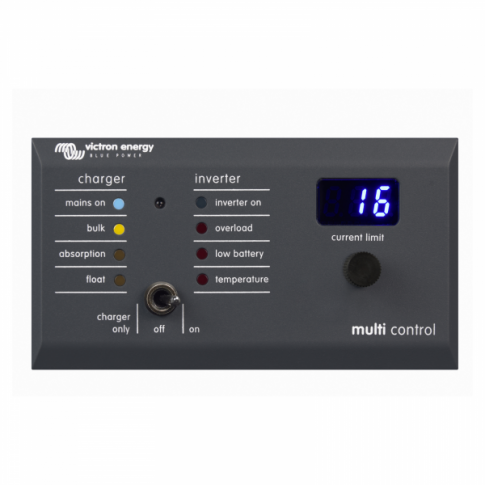

Digital Multi Control 200/200A GX (Right Angle RJ45) Panel

Description

Photonic Universe is an official distributor of products from Victron Energy – the globally renowned manufacturer of high-quality hybrid power electronics. Victron’s control panels are designed for seamless integration, reliable operation, and intuitive user control of their inverter/charger systems.

The Victron Digital Multi Control 200/200A GX (Right Angle RJ45) Panel allows you to remotely monitor and control the AC input current limit, as well as switch your Multi or Quattro inverter/charger system on, off, or to charger-only mode. Designed for easy installation and compatibility with a wide range of Victron inverter/chargers, it integrates cleanly with your boat, vehicle, or home energy system control panel.

Key functions:

1. Universal compatibility – Works with all Victron Multi/Quattro inverter/chargers, including:

• MultiCompact
• MultiPlus, MultiPlus-II and MultiPlus-II GX
• Quattro and Quattro-II
• EasySolar and EasySolar-II GX
• Legacy pre-VE.Bus Multi and Quattro units (2008 and earlier)

2. Easy installation – In most cases, simply connect the panel to the inverter/charger using an RJ45 UTP cable. No extra setup is needed for standard configurations.

3. Precise AC input control – Adjust the maximum AC input current limit via the front panel knob. Ideal for mobile setups that connect to different AC sources with varying current ratings, preventing circuit breaker trips and optimising charging.

4. Multiple AC input support – Automatically adapts to systems with more than one AC input (e.g., Quattro systems or extended VE.Bus configurations), remembering the last used current limit for each source.

5. Power mode switch – Turn your inverter/charger system ON, OFF, or to CHARGER-ONLY mode directly from the panel.

Additional features:

• Clear visual status: Eight LED indicators replicate the inverter/charger status lights, with automatic brightness adjustment in low light.
• Digital display: Shows the AC input current limit, AC source name, and any VE.Bus error codes.
• Generator integration: Can be configured to display “GEN” and apply a preset AC current limit when running from a generator with an external transfer switch.
• Scalable control: Automatically adjusts current limit range to match system capacity – for example, up to 80A for five 16A units in parallel.
• Right-angle RJ45 connection: Designed for space-saving installation in tight control panel layouts.

Applications:
Perfect for marine, vehicle, and off-grid installations where flexible, remote control of inverter/charger systems is required.

This control panel is supplied with four mounting screws.

Click on the Details and Specifications tab for more information.

Specifications

Specifications:

• Dimensions: 65 x 120 x 17 mm
• Weight: 0.35 kg

This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.

Installation

This control panel comes with a detailed user manual (see Documents tab) which explains wiring, installation and operations.

Please note that this inverter/charger is not supplied with a RJ45 connection cable.

If you need help with installation or have any technical questions we can provide FREE support – please contact us by email or phone (see Contact Us page for more information).

Documents and links

The following documents are available to download:

User manual for Victron Digital Multi Control 200/200A GX Panel (VDM-CONTROL)

Installation guide for Victron Digital Multi Control 200/200A GX Panel (VDM-CONTROL)

Dimensions for Victron Digital Multi Control 200/200A GX Panel (VDM-CONTROL)
