Complete 5kW off-grid power system with 5kWh high performance battery and 7kW solar power array

Description

The P5000M-7000 is a complete, premium-grade off-grid power package designed for high-demand applications, backup power, and sustainable energy independence. Delivering up to 5kW of continuous AC power and storing 5,120Wh of energy in a durable LiFePO₄ battery, this system is paired with a 7kW high-efficiency solar array for fast, renewable charging.

Unlike conventional off-grid setups, the P5000M-7000 is fully pre-wired and integrated into a single portable solar generator unit. All core components — including the battery, inverter, dual MPPT solar charge controller, AC/DC distribution, safety switches, connectors, monitoring display, and output sockets — are already built-in. This means that installation is as simple as connecting the solar panels via their MC4 connectors, with no other wiring or configuration required. Within minutes of delivery, you can have a fully operational off-grid power system without specialist tools or complex electrical work.

Whether you’re powering an off-grid home, supporting a construction site, or safeguarding against power outages, this system offers reliable, rugged, and ready-to-deploy energy anywhere.

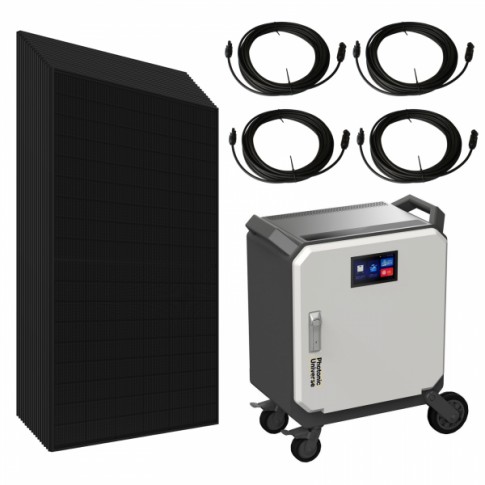

Includes:

• 5000W 5120Wh Portable Solar Generator (P5000M)
• 16 × Sharp NU-JC430B Full Black Monocrystalline Solar Panels (SRP-430B)

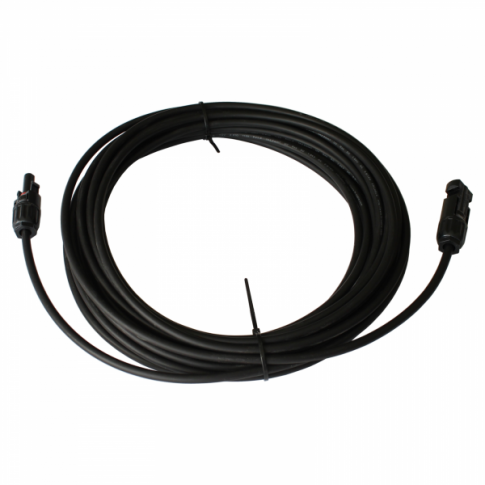

• 4 × 10m 6mm² Single-Core Extension Cables with MC4 connectors (10M60)

Core Components

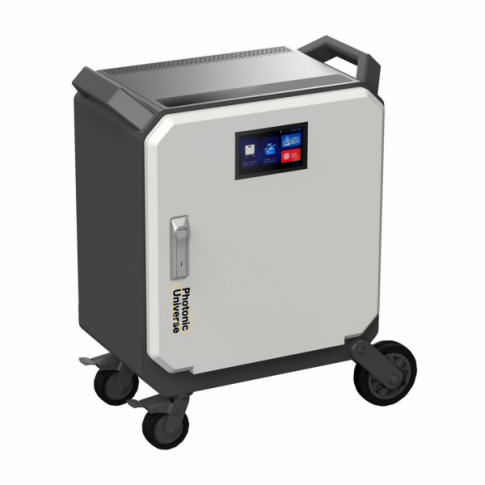

At the heart of the system is the P5000M Portable Solar Generator, equipped with a 5,120Wh LiFePO₄ battery rated for over 6,000 cycles at 80% depth of discharge. It delivers up to 5kW of AC output through four 2,000 W sockets, with an additional 5kW EPS port for powering a single high-demand appliance. Charging options are flexible — choose from a 2kW slow AC charge via a standard mains socket, a 5kW fast AC charge via a dedicated wired outlet (professional installation required), or solar charging up to 7kW using dual MPPT inputs (500V / 14A each).

All power management is built in — no separate inverter, charge controller, or wiring panels are needed. Users can monitor and control the system through a bright LCD display or the Power Zero App via Wi-Fi or Bluetooth. With an IP65-rated dust- and water-resistant casing, heavy-duty cooling, and integrated wheels, the P5000M combines durability with portability, making it ideal for both stationary and mobile use.

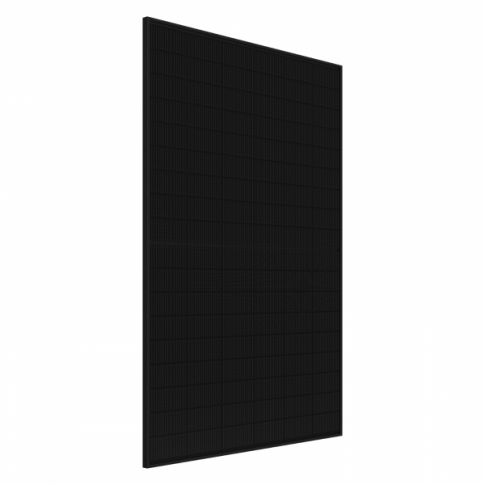

The system also includes sixteen Sharp NU-JC430B Full Black Monocrystalline Solar Panels. Each 430W panel features advanced TOPCon cell technology for excellent performance in high temperatures, low light, and shaded conditions. Their IP68-rated construction is resistant to PID, salt mist, ammonia, snow, dust, and sand, ensuring dependable operation even in the harshest environments. Pre-fitted MC4 connectors make linking them to the generator quick and secure, with no special tools required. Backed by up to 25 years product warranty (EU) and 30 years performance warranty, these panels are built for decades of service.

Key Benefits

• True Plug-and-Play Off-Grid Power – Fully pre-wired, no complex installation
• Rapid Deployment – Operational within minutes; just connect the solar panels
• High Output – Up to 5kW AC output with 5.12kWh storage capacity
• Fast Renewable Charging – 7kW solar array included
• Long Service Life – LiFePO₄ battery rated for over a decade of daily use
• Rugged Reliability – IP65/IP68 protection for outdoor and industrial conditions
• Portable Design – Integrated wheels, handles, and app-based monitoring

Applications

• Off-Grid Homes & Cabins – Instant, reliable daily power for lighting, appliances, and tools
• Emergency Backup – Keep essential services running during power cuts
• Construction & Remote Worksites – Power tools and equipment with zero grid dependency
• Mobile & Outdoor Living – Perfect for caravans, campervans, glamping, and remote lodges
• Disaster Relief & Field Operations – Clean, deployable energy in crisis situations
• Sustainable Energy Projects – Ideal for eco-lodges, farms, and renewable ventures

The P5000M-7000 is a ready-to-go, high-capacity off-grid power solution combining a long-life LiFePO₄ battery, high-efficiency solar panels, and complete built-in power electronics in a single portable package. With no installation work beyond connecting the panels, it’s the easiest way to get reliable, clean energy — anywhere from remote worksites to off-grid homes and emergency situations.

Specifications

P5000M specifications:

• Maximum AC EPS input: 5000W
• Maximum AC EPS output: 5000W
• Maximum AC socket output: 2000W per socket (4 sockets, 5,000W in total)
• Maximum solar input: 7000W total (2 strings)
• Maximum solar input voltage: 500V @14A per string
• Capacity: 5120Wh
• Lifecycle: 6000 cycles @80% capacity
• Operating temperature: from 0°C to +40°C
• Size: 722W x 809H x 399D mm (with base)
• Size: 651W x 670H x 399D mm (without base)
• Weight: 93 kg

Solar panel specifications (per panel):

• Peak power: 430W
• Maximum power voltage: 32.73V
• Maximum power current: 13.14A
• Open circuit voltage: 39.09V
• Short circuit current: 14.01A
• Power tolerance: 0/+5%
• Dimensions: 1722 x 1134 x 30 mm
• Weight: 20.7 kg
• Mounting holes for ease of installation
• 2 x 1.25m of high-quality single core solar cable
• Male and female MC4 waterproof connectors

Cable specifications:

• Conductor: tinned copper
• Cross section: 6.0mm
• Insulation and Jacket: 120C XLPE
• Working temperature range: -40C to +120C
• Certification: TUV

The Portable Solar Generator is covered by a 5 year warranty and the solar panels in this kit are covered by up to a 25-year product guarantee provided by Sharp Electronics. In addition, solar cells are guaranteed to produce at least 99% of nominal power in the first year after purchase and less than 0.4% degradation of nominal power each year after until 30 years after purchase, for a minimum of 87.5%.

For more information please refer to our Terms and Conditions.

For installation advice, please click on the Installation tab.

Installation

This product comes with a user manual which explains wiring and operations (see Documents tab). Additionaly, we can offer a detailed wiring diagram and full technical support for installations and settings upon request.

If you need help with installation or have any technical questions we can provide FREE support – please contact us by email or phone (see Contact Us page for more information).

Documents and links

The following documents are available to download:

User manual for the 5000W 5120Wh Photonic Universe portable power station (P5000M)

Datasheet for the 5000W 5120Wh Photonic Universe portable power station (P5000M)

Datasheet for Sharp NU-JC430B 430W monocrystalline solar panel (SRP-430B)

Installation Guide for Sharp NU-JC430B 430W monocrystalline solar panel (SRP-430B)
