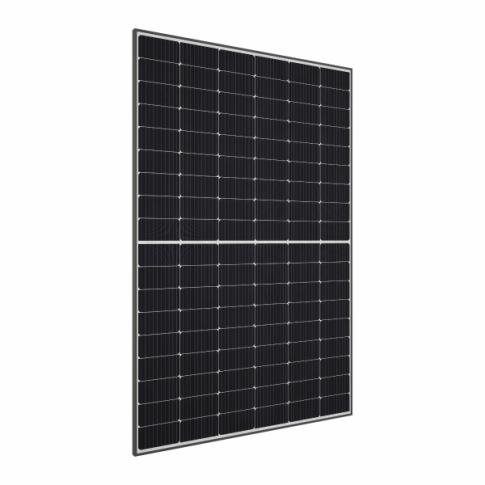

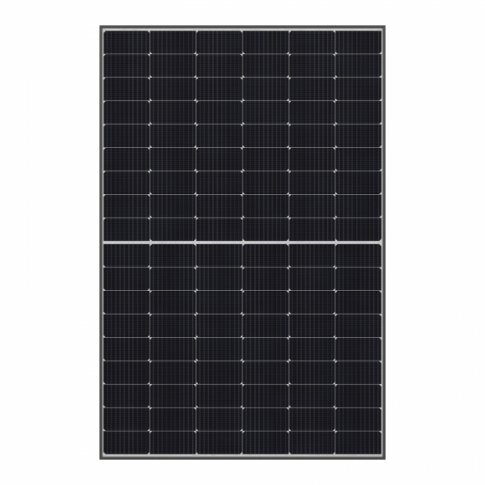

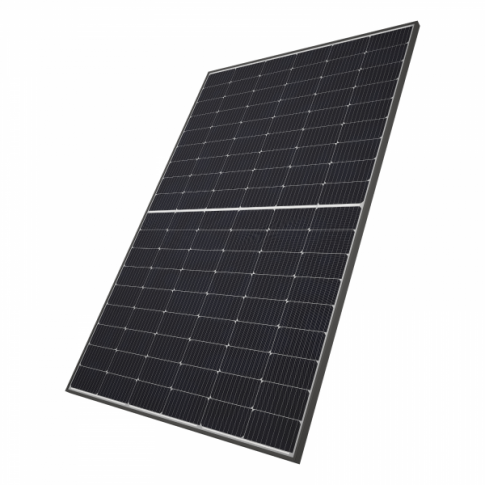

410W Sharp NU-JC410B Black Frame Monocrystalline Solar panel with high-efficiency PERC cells

Description

Photonic Universe are proud to present this high quality black frame 410W solar panel from leading solar panel manufacturer Sharp, which has over 60 years of experience with solar technology and over 50 million solar panels installed all over the world.

This MCS certified panel is perfect for a wide variety of applications, from grid-tie household systems to off-grid installations where mains power is limited or unavailable such as boats, caravans, campervans, cabins or glamping huts. These high-power panels are ideal for large systems where the time and expense of fitting a high wattage array needs to be minimised.

High efficiency solar cells use PERC technology with 10 busbars to extract more power from a smaller surface area, increasing the output of the panel without increasing the size. The half-cut cell construction decreases internal losses, reduces risk of hotspots and improves performance in shaded conditions.

The robust design of the panel is IP68 (waterproof) rated, and tested for resistance against PID, salt mist, ammonia, heavy snow, dust and sand. This thorough testing ensures a long service life even in harsh marine or wilderness conditions. A pair of male / female MC4 connectors are crimped on the end of the cable for easy waterproof connection to other solar panels, extension leads or your existing system.

With a 25-year product guarantee for EU countries (12-year globally), and up to a 25-year power output guarantee, you can be confident in the quality, durability and longevity of this premium solar panel.

UK mainland deliveries only. For non-mainland addresses (including the Scottish Highlands) please contact us for a delivery quote.

Click on the Details and Specifications tab for more information.

Specifications

Specifications:

• Peak power: 410W
• Maximum power voltage: 31.3V
• Maximum power current: 13.1A
• Open circuit voltage: 37.79V
• Short circuit current: 13.81A
• Power tolerance: 0/+5%
• Dimensions: 1722 x 1134 x 30 mm
• Weight: 21.8 kg
• Mounting holes for ease of installation

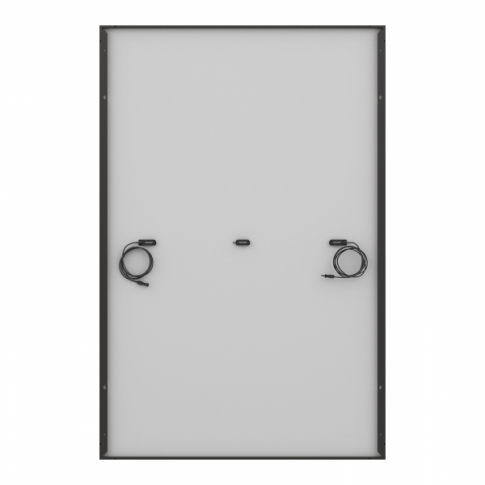

• 2 x 1.25m of high-quality single core solar cable
• Male and female MC4 waterproof connectors

The product is covered by up to a 25-year product guarantee provided by Sharp Electronics. In addition, solar cells are guaranteed to produce at least 98% of nominal power in the first year after purchase and less than 0.54% degradation of nominal power each year after until 25 years after purchase, for a minimum of 85%.

Full warranty documentation can be found in the Documents tab. For more information please refer to our Terms and Conditions.

Installation

Please note: if the application of this solar panel is to charge batteries, it is essential that this solar panel is used with a suitable solar charge controller. We recommend the following types of solar charge controllers:

• For 12V batteries, a high efficiency MPPT solar charge controller rated at 40A or higher
• For 24V batteries, a high efficiency MPPT / or standard PWM solar charge controller rated at 20A or higher

If you need help with installation or have any technical questions we can provide FREE support – please contact us by email or phone (see Contact Us page for more information).

Documents and links

The following documents are available to download:

Datasheet for Sharp NU-JC410B 410W monocrystalline solar panel (SRP-410B)

Installation Guide for Sharp NU-JC410B 410W monocrystalline solar panel (SRP-410B)

Warranty information for Sharp NU-JC410B 410W monocrystalline solar panel (SRP-410B)

Pallet and Packing information for Sharp NU-JC410B 410W monocrystalline solar panel (SRP-410B)

Sharp Corporate Social Responsability Statement

MCS Certificate of Compliance

UKCA declaration

CE declaration

VDE declaration

PID Test Certificate

Ammonia Test Certificate

Sand Test Certificate

Salt Mist Test Certificate
