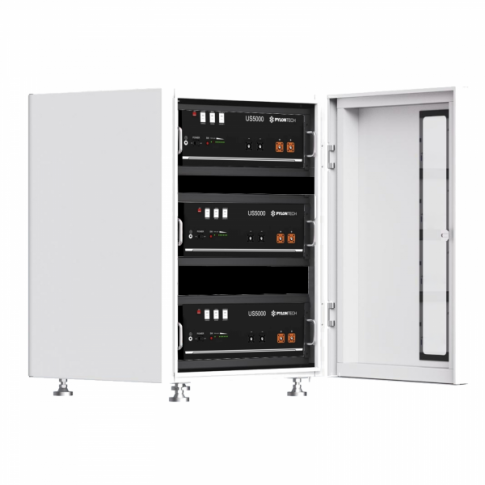

14.4kWh 48V Pylontech US5000 LiFePO4 Battery storage system with IP65 rated cabinet

Description

Key Features:

• High storage capacity: Fitted with three top-of-the-line Pylontech Lithium-Iron Phosphate batteries with a large 14.4kWh storage capacity. Provides access to on-demand power for off-grid, supplemental, or UPS systems.
• Durable design: Built for tough environments, with IP65 protection ensuring the cabinet is resistant to dust, water, and adverse conditions, as well as capable of handling temperature fluctuations. This makes it ideal for outdoor and industrial installations, offering more flexibility and reliability in challenging environments while reducing maintenance needs.
• Efficient space utilisation: The cabinet’s compact and stackable design maximises storage in limited spaces.
• Secure and stable mounting: Equipped with high-strength brackets to secure battery modules, reducing vibration and enhancing stability.
• Protection & Security: A locking mechanism ensures the batteries can be stored safely with ease.

What’s Included:

• IP65 rated secure cabinet
• 3 x Pylontech 4.8kWh 48V LiFePO4 batteries
• 2 x 2m cable pack for connecting batteries in parallel

Applications:

The ES-CABINET is ideal for energy storage systems requiring robust, flexible enclosures. Perfect for residential, commercial, and off-grid energy storage solutions where durability and adaptability are essential.

Each cabinet is equipped with mounting brackets and installation hardware for a secure and hassle-free setup.

Click on the Details and Specifications tab for more information.

Specifications

Battery Specifications (per battery):

• Storage rating: 4800Wh
• Voltage: 48V
• Rated to >8000 cycles at 95% Depth of Discharge (DoD)
• Parallel capability up to 16 units
• Nominal charge and discharge current: 100A
• RS485 and CAN compatible
• Dimensions: 442 x 420 x 161mm
• Weight: 39.7kg

Cabinet Specifications:

• Protection: IP65
• Size: 570 x 600 x 800 mm
• Weight: 43.0 kg

The batteries are covered by a 7 year warranty and the cabinet is covered by a 5 year warranty. For more information please refer to our Terms and Conditions.

Installation

Documents and links

Datasheet for the Pylontech Lithium batteries (US5000)
